Sloped Roof Multypanel Covering Detail With 5x1.00x4.00 Panel

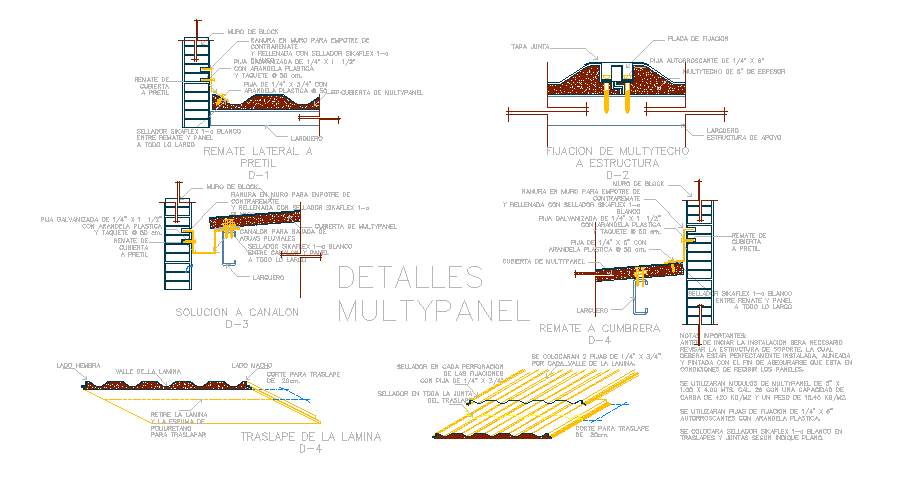

This sloped roof multi-panel covering detail drawing presents the construction layout and fixing arrangement used for installing insulated roof panels on a sloped roof structure. The drawing includes multiple sectional details such as ridge finishing, lateral parapet finishing, gutter solution, and panel overlap arrangement. The roofing system uses multi-panel modules sized approximately 5 x 1.00 x 4.00 m, manufactured with 26-gauge metal sheets. Each roof panel is designed with a structural load capacity of about 420 kg per square meter and a unit weight close to 15.45 kg per square meter. The drawing also shows the roof ridge detail where the panels are joined at the roof peak using metal flashing and sealing components to prevent water penetration. Fixing plates and galvanized bolts are used to connect the roof panels securely to the support structure.
