Concrete Aqueduct Bridge Section with Reinforcement Foundation Details

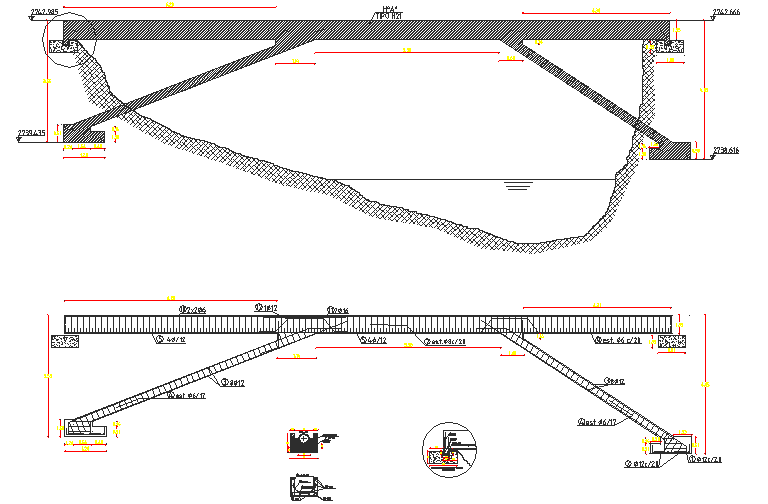

Explore this Concrete Aqueduct Bridge sectional drawing showing detailed structural construction information, including joinery details, reinforcement arrangement, foundation structure, and bridge height levels. The AutoCAD drawing illustrates a complete sectional view of the aqueduct bridge with precise engineering annotations. Reinforcement details such as the number of steel bars, bar diameters, spacing between reinforcement bars, and structural concrete components are clearly indicated. The drawing also highlights the concrete deck structure, side retaining walls, and the water channel profile passing through the bridge. Dimension lines and level markings provide accurate reference measurements required for structural planning and construction.
