Balloon Frame Roof Construction Detail With Wood Stud Structure

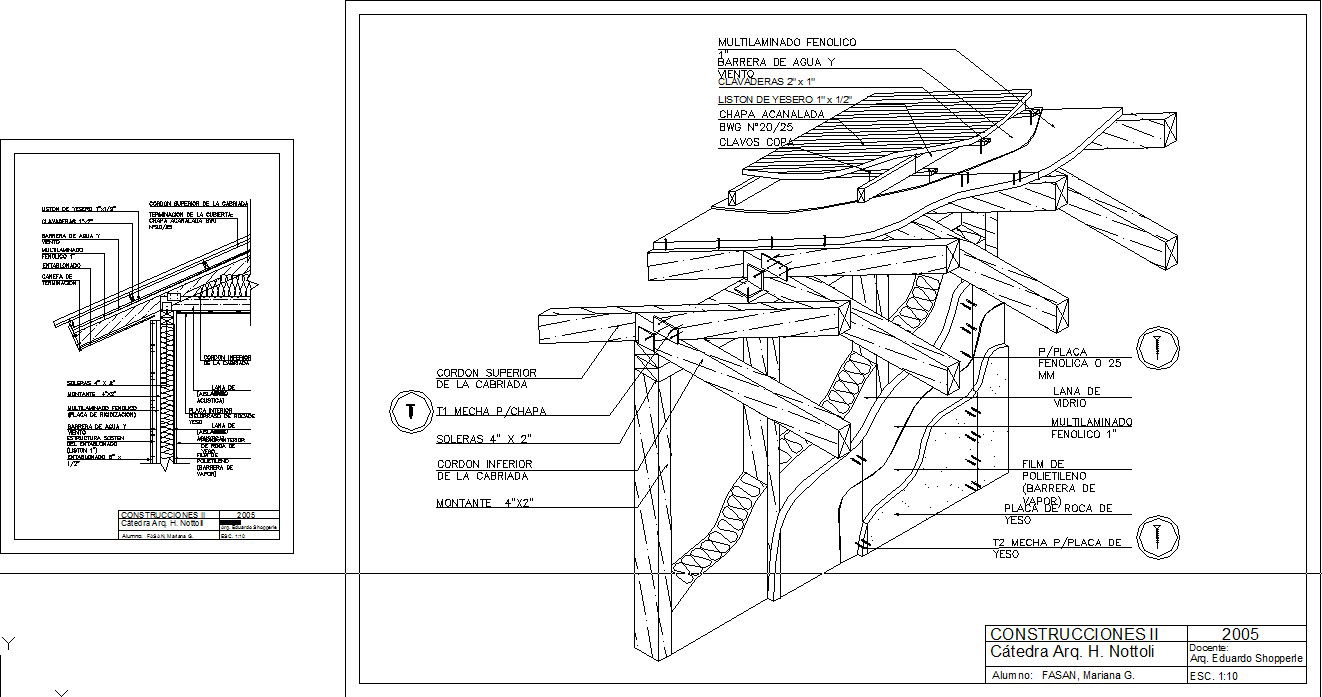

This balloon frame roof construction detail drawing illustrates the structural assembly of a timber roof system integrated with a balloon frame wall structure. The drawing clearly presents the arrangement of wood studs measuring 4 by 2 inches, upper and lower wall plates, and the connection between vertical framing members and the roof structure. The roof assembly includes corrugated metal sheet roofing supported by wooden rafters and battens measuring approximately 2 by 1 inches, which create the base for the roof covering system. The design also indicates multilayer construction, including phenolic multilaminate board, water and wind barrier layer, polyethylene vapor barrier, and glass wool insulation positioned within the wall cavity for thermal performance.
