Garage Ramp Structural Detail with 30cm Wall and 50cm Base Layout

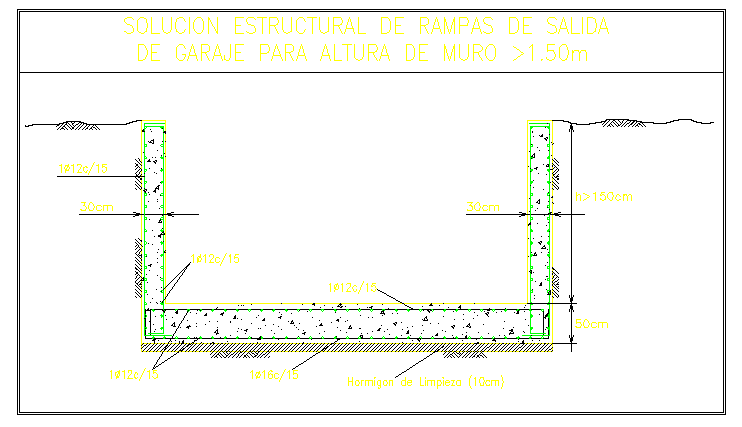

This garage ramp structural detail also includes the concrete base preparation layer indicated as 10 cm cleaning concrete beneath the structural foundation. The sectional layout clearly demonstrates how the ramp slab integrates with retaining walls and the supporting foundation system. These technical details help architects, structural engineers, and builders understand the construction method and reinforcement arrangement required for garage ramp structures. The drawing is useful for parking garage projects, basement vehicle access ramps, and building entrance ramp construction planning. This AutoCAD drawing can be used in AutoCAD, Revit, and other CAD software for structural design documentation and construction detailing.
