Solution of Pluvial or Sanitary Slopes with Concrete and Mortar Detail
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

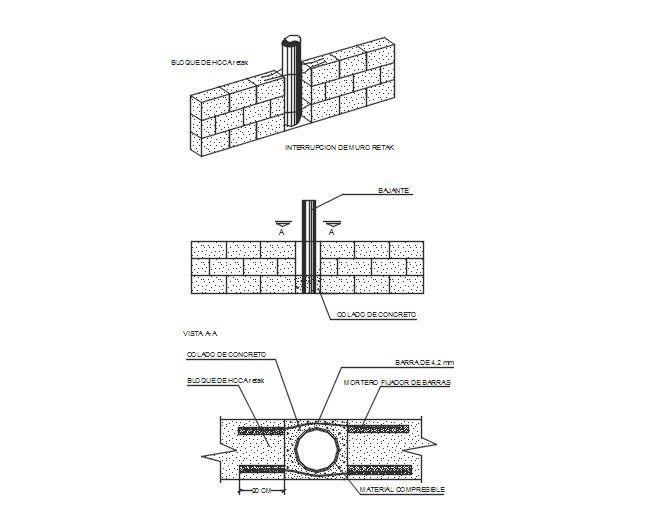

This AutoCAD DWG file provides a detailed design for the solution of pluvial or sanitary slopes, including concrete casting, mortar, and compressible material. The drawing illustrates the installation of the drainpipe within the wall, including reinforcement and specific details such as the 2.4mm bar and cavity depth. Ideal for engineers and construction professionals working on plumbing or drainage systems.
