Waterproof Wall Section With Anti Capillary Barrier Foundation Detail

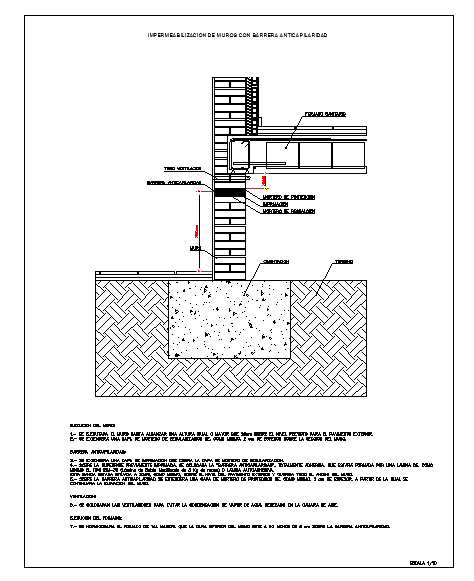

This drawing presents a waterproof wall section with anti-capillary barrier foundation detail prepared in AutoCAD files for structural wall construction. The section illustrates the vertical wall structure connected to a reinforced foundation block and ground base layer. The drawing clearly shows the waterproof wall system, including the anti-capillary barrier placed between the foundation and masonry wall to prevent moisture rising through the wall structure. Construction layers such as the foundation base, structural wall thickness, and floor slab connection are shown to guide accurate wall construction. The waterproof barrier placement helps control moisture penetration and protects interior wall surfaces from dampness.
