Ground connection chamber detail with copper conductor section

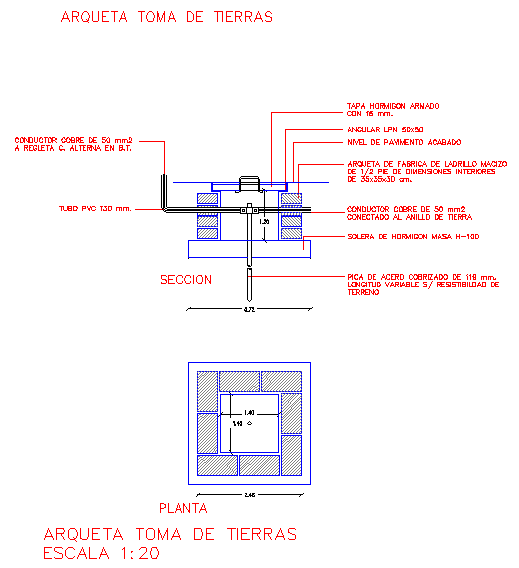

The ground connection chamber detail drawing illustrates the structural and electrical arrangement of an earthing chamber used for grounding systems. The section shows a copper conductor of fifty square millimeters connected to a grounding rod placed vertically into the soil to achieve proper electrical grounding. The grounding rod is illustrated with a diameter of sixteen millimeters and variable length depending on soil resistivity conditions. The drawing also includes a PVC pipe with a diameter of one hundred millimeters used to guide and protect the copper conductor entering the grounding chamber. The chamber structure is built using solid brick masonry with internal dimensions of fifty-five by fifty-five centimeters, which protects the grounding connection components.
