Wooden False Floor Panel System with Adjustable Support Base Detail

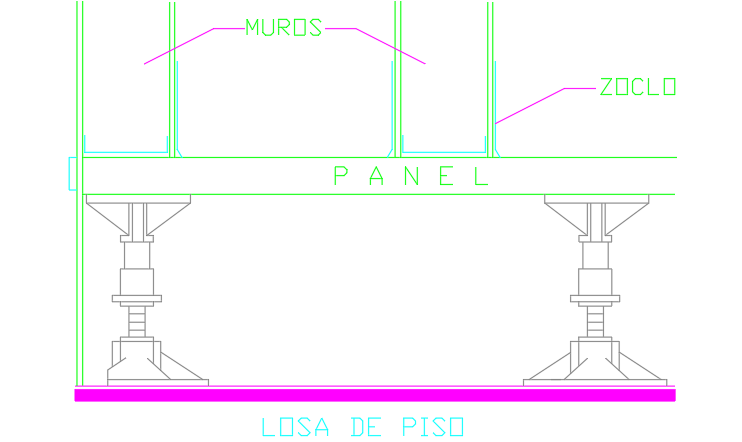

This drawing presents the construction detail of a wooden false floor system installed above a structural floor slab. The layout shows wooden floor panels supported by adjustable pedestal bases that create an elevated floor structure. The system includes panel boards forming the walking surface, vertical support pedestals, and base plates fixed over the floor slab. The elevated arrangement allows space below the floor panels for routing services such as electrical wiring, data cables, and mechanical connections. The drawing clearly illustrates the alignment between the wooden panels, pedestal supports, and the structural floor surface.
