Mosque layout plan elevation section dome structure with dimensions

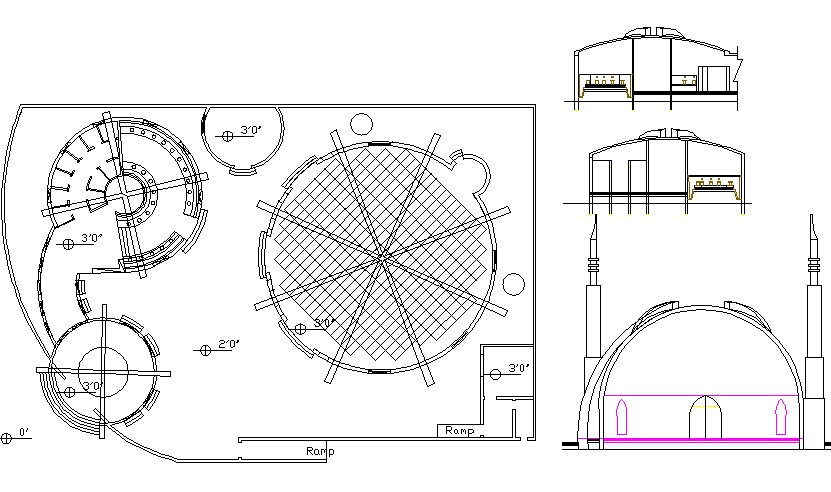

This mosque layout plan drawing presents a comprehensive architectural design, including layout plan, structural plan, and elevation views with accurate dimensions for religious building construction. The mosque layout plan illustrates prayer hall arrangement, circulation paths, entrance areas, and spatial organisation designed for functional worship activities. The structural plan highlights column placement, load-bearing elements, and foundation alignment to ensure stability and durability.
