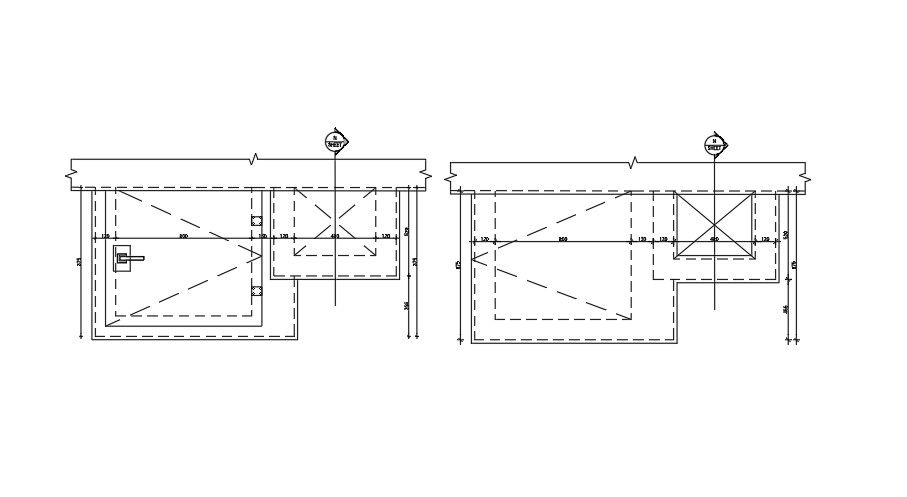

GRC frame layout with dimensions section and reinforcement details

This GRC frame layout drawing presents detailed architectural sections with precise dimensions, reinforcement positioning, and frame alignment for accurate façade design. The drawing includes sectional views showing frame thickness, internal reinforcement layout, and connection detailing with clear dimension annotations. It highlights GRC panel fixing, support structure, and anchoring system using cad files and AutoCAD files for professional construction planning. GRC frame layout ensures proper alignment, durability, and structural clarity suitable for façade and cladding applications.
