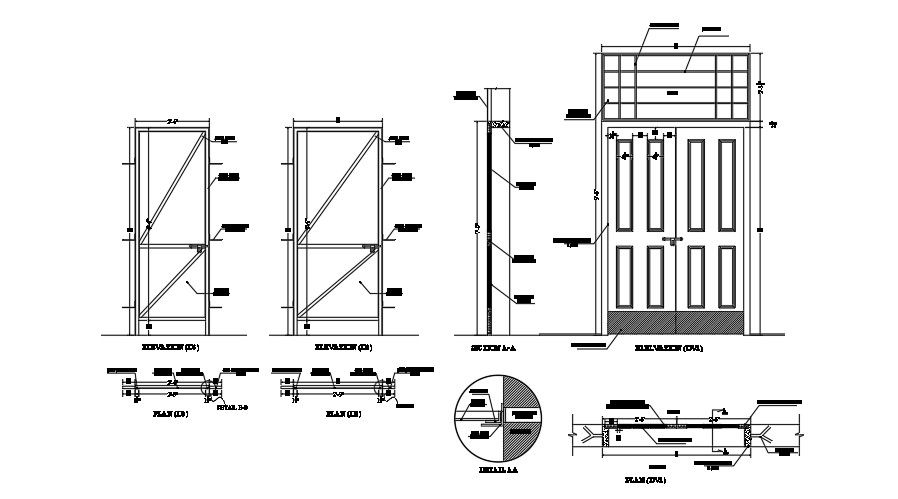

Door plan, elevation and section drawing.

This Architectural Drawing is of Door plan, elevation and section drawing. A door shown in elevation is generally delineated to show the side on which the hinges are placed. This is done by drawing a dotted line from the top and bottom corner of the door on one side to the center of the door on the opposite side. A 'section drawing', 'section' or 'sectional drawing' shows a view of a structure as though it had been sliced in half or cut along another imaginary plane. For more details and information download the drawing file.
