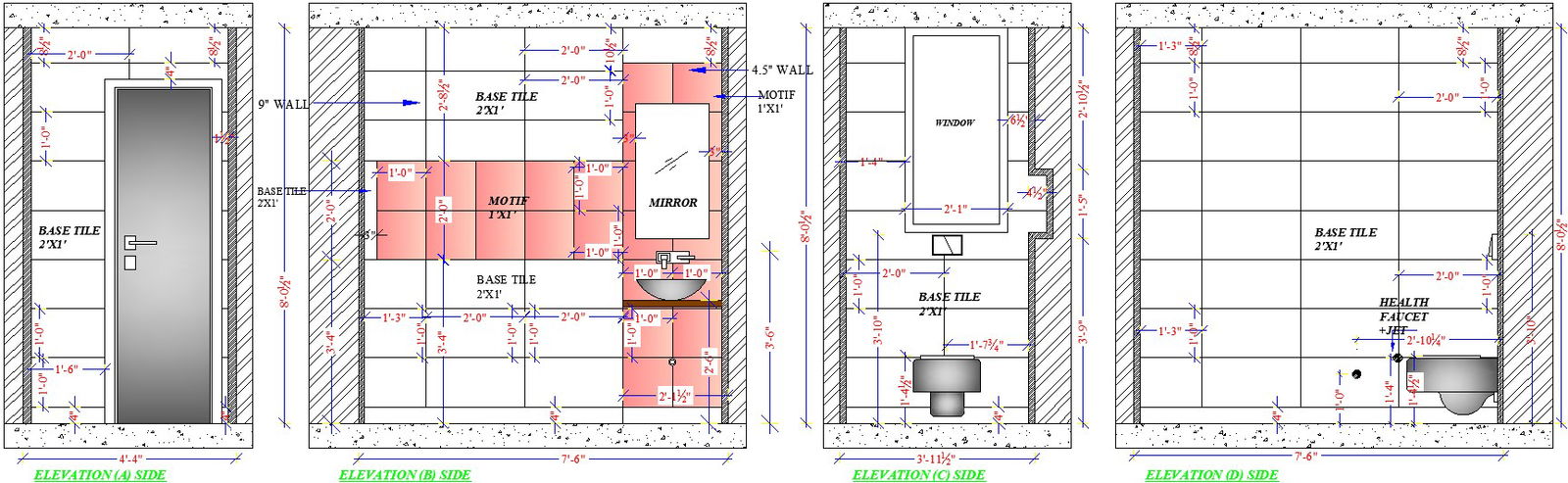

Here Elevation of toilet detailing The drawing shows the working drawing details for the toilet with its design layout, material specification, wall and floor finishes and slopes. The drawing comprises of the plan, Toilet size 1800x2400 mm. (6'x8') has got WC, Basin and Shower Area. Drawing accommodates complete working drawing detail with the required section, elevation and material specification detail. toilet sizes are usually between 27 to 30 inches deep; that is 69 to 76 cm, about 20 inche s in width the water valve for the incoming water to the top of the toilet supply tank. The pipe fitting for the water valve likewise is 5.5″ above the finished floor. also in drawing shows motif tile size is 1' x 1' that show in vertical t , base size tile is 2' x 1' also in this plan show different elevation side view , front view , left and right side view for more details of Elevation of toilet detailing download this file.
