2nd floor schematic plan in detail AutoCAD drawing, dwg file, CAD file


Description

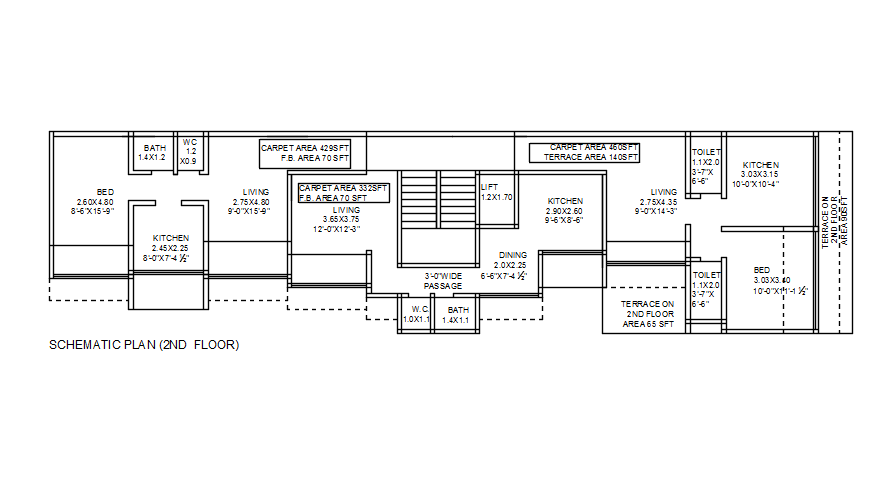

This architectural drawing is 2nd floor schematic plan in detail AutoCAD drawing, dwg file, CAD file. In this drawing there were passage, kitchen, living room, dining room, bedrooms, toilet-bathroom, staircase section, lift section, open terrace, balcony, etc. are given with details. For more details and information download the drawing file.
