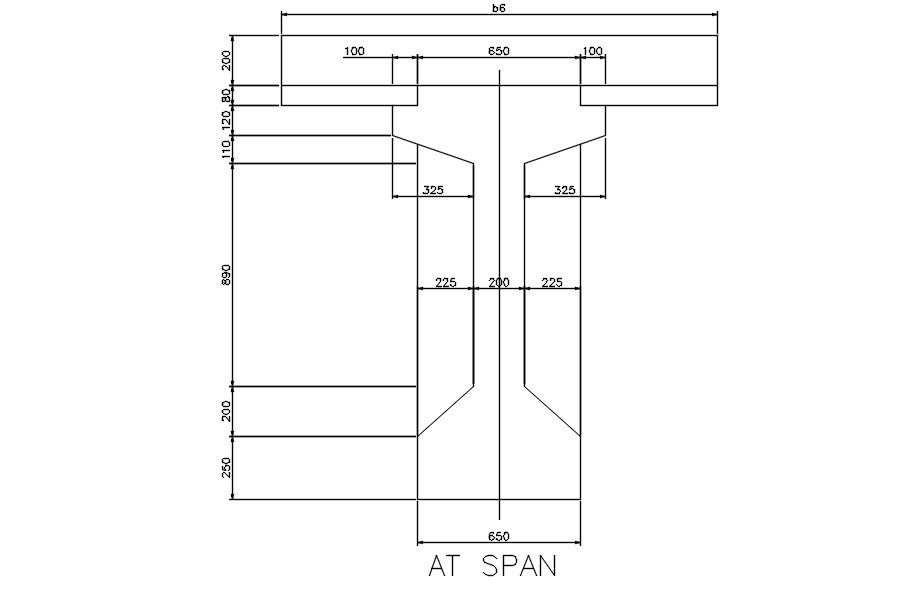

This Architectural Drawing is AutoCAD 2d drawing of Girder cross section at span in AutoCAD, dwg file. Plate girder can be used for spans between 10 metres and more than 100 metres (33 feet to more than 330 feet). Stiffeners are occasionally welded between the compression flange and the web to increase the strength of the girder
