False Ceiling Detail With Lighting Layout And Mineral Fiber Tile Sec

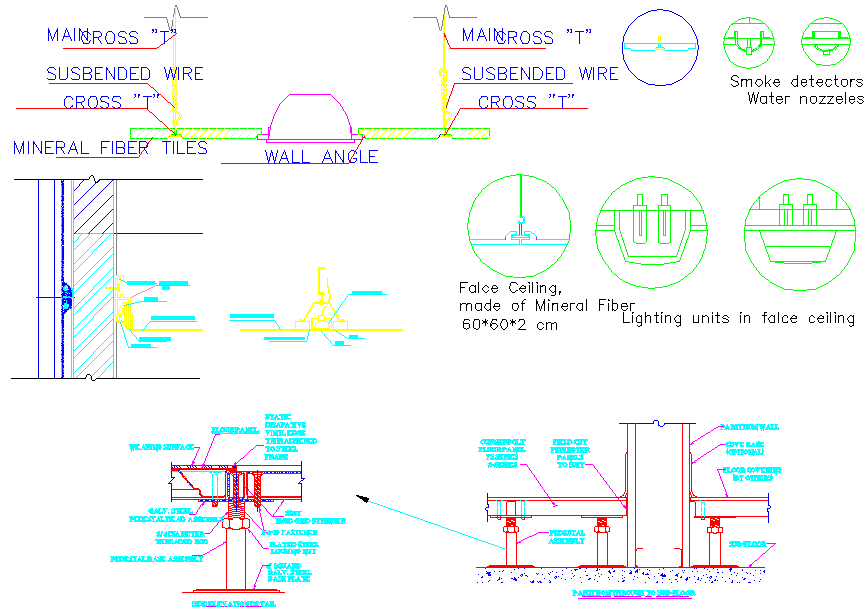

This false ceiling drawing presents a detailed sectional layout with lighting arrangement and mineral fiber tile system showing complete installation structure. The drawing includes the main cross T and cross T suspended wire system with wall angle support, ensuring proper ceiling framework. It highlights mineral fiber tiles sized 600 by 600 mm with accurate placement and alignment for a uniform ceiling finish. Section details clearly show the connection to the wall and slab with support members and fixing components for stable installation. This AutoCAD file drawing is useful for interior ceiling design, lighting planning, and construction detailing with precise representation.
