Hotel Type Apartment AutoCAD Design with Floor and Elevation Plan

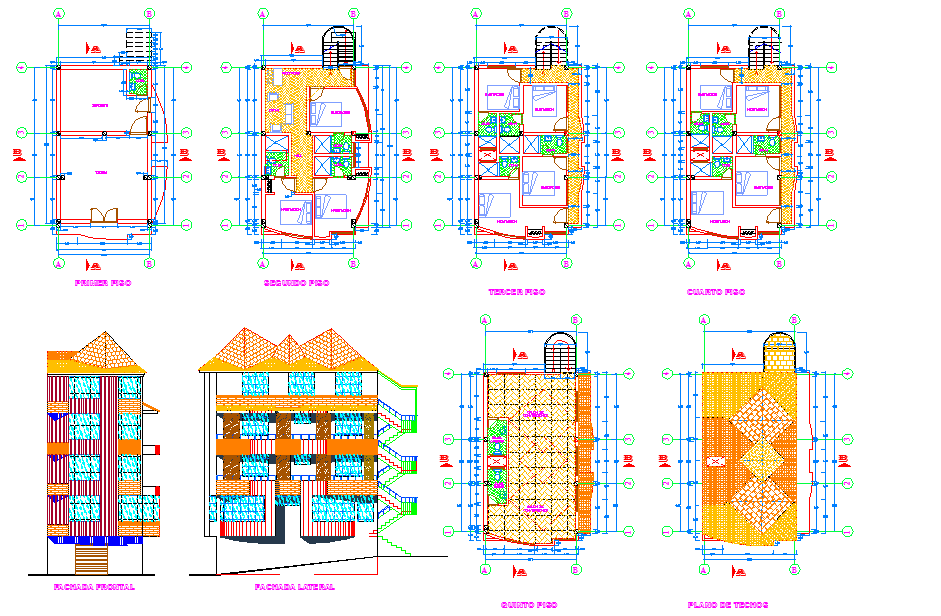

This hotel-type apartment AutoCAD DWG design features a complete multi-storey layout with detailed floor plans, elevations, and sectional drawings. The design includes the ground to the fifth floor, with each level organized to accommodate independent suites, bedrooms, living areas, and service rooms. The plan demonstrates a functional layout for hospitality projects that combine hotel facilities with long-stay apartment convenience. The elevation view showcases a contemporary building façade with balconies, pitched roofs, and vertical access via staircases.

Each drawing is clearly dimensioned and labeled, providing accurate information for architectural and construction purposes. The design offers optimal space planning for compact urban plots while maintaining privacy and aesthetics. The sectional drawings present vertical alignment, structural detailing, and ceiling heights for better execution understanding. This DWG file is ideal for architects, interior designers, and builders who specialize in mixed-use or serviced apartment projects. It serves as a valuable reference for modern hotel-apartment design, integrating comfort, luxury, and functionality.
