Famous Hospital Plan AutoCAD with Multi Floor Layout and Dimensions

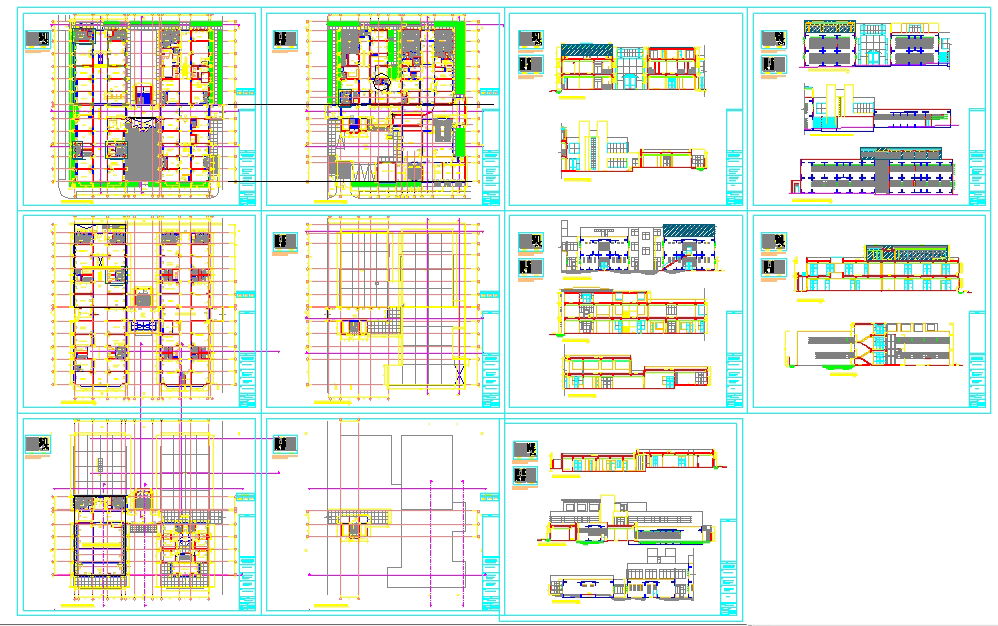

This Famous Hospital Plan AutoCAD DWG file provides a comprehensive and professionally drafted multi-storey healthcare facility layout with detailed architectural, structural, and service planning. The drawing includes multiple floor plans with standard patient wards measuring approximately 6.0 m x 8.0 m, OPD consultation rooms of nearly 3.0 m x 3.5 m, ICU and emergency units, and fully equipped operation theatre zones. It also shows diagnostic departments, pharmacy counters, administration offices, and staff rooms. Central corridors with widths of about 2.0 m to 2.4 m, staircase cores, lift shafts, and fire escape routes are clearly marked. Structural grids, column spacing, slab thickness, and service shafts are included for accurate construction coordination.
