Community Health Centre 11.50x16.00 m Layout Plan Details AutoCAD

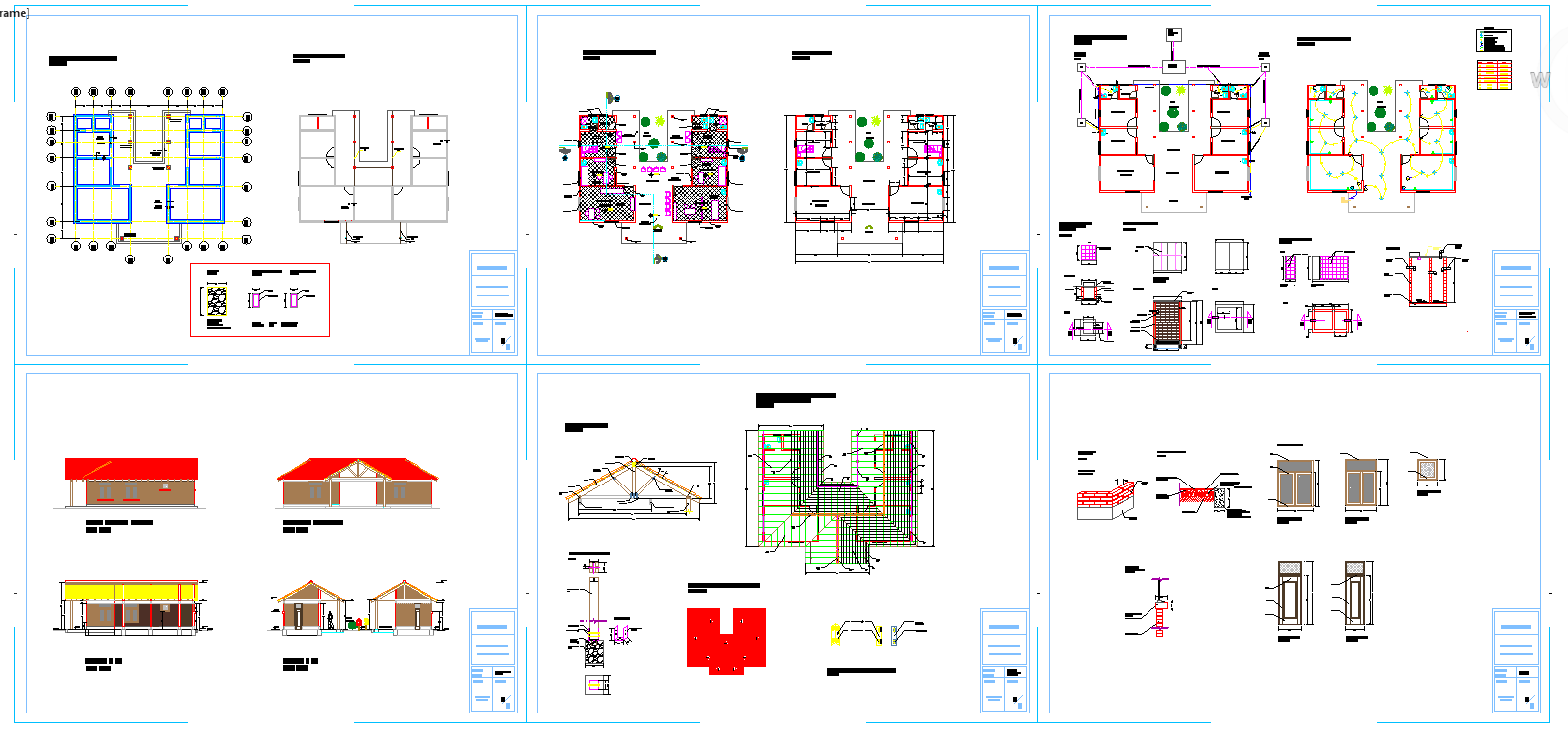

This Community health centre plan AutoCAD clinic drawing includes a complete architectural layout of an 11.50x16.00 m healthcare building with detailed room arrangement for waiting hall, consultation rooms, administration, pharmacy, emergency area, wards, toilets, circulation, and patio spaces. The drawing shows accurate structural information such as a 0.40x0.60 m foundation, 0.40x0.40x0.40 m dado foundation blocks, 0.15x0.30 m beams, and 8x8 inch wooden columns. Elevations, sections, roof truss details, door window schedules, and floor finish layouts are included to help architects and engineers understand construction levels like 2.70 m and 3.00 m heights with precise dimensioning.
