Residential Building Master Plan with Elevation Layout Design

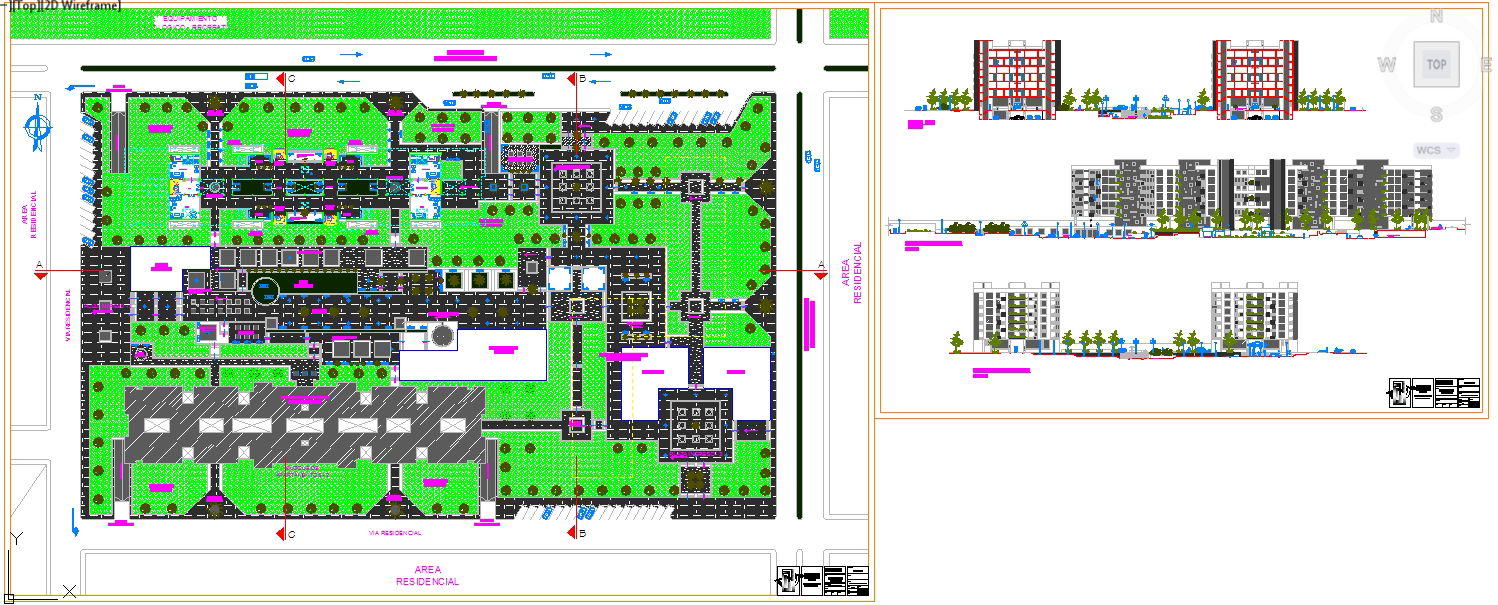

This residential building master plan presents a comprehensive site layout prepared in AutoCAD DWG format, showing building block placement, internal road network, landscaped green zones, parking bays, pedestrian pathways, and access control points. The drawing includes clearly defined plot boundaries, circulation planning, driveway widths, turning radii, and open space distribution. Multiple residential blocks are arranged systematically with setback spacing, entry courts, and central activity areas. The layout also indicates tree plantation grids, lawn development, and utility zones to support organized residential planning. All elements are proportionally aligned to ensure functional movement and efficient land utilization within the residential building master plan.
