Government Office Project Plans Elevation Sections in detail

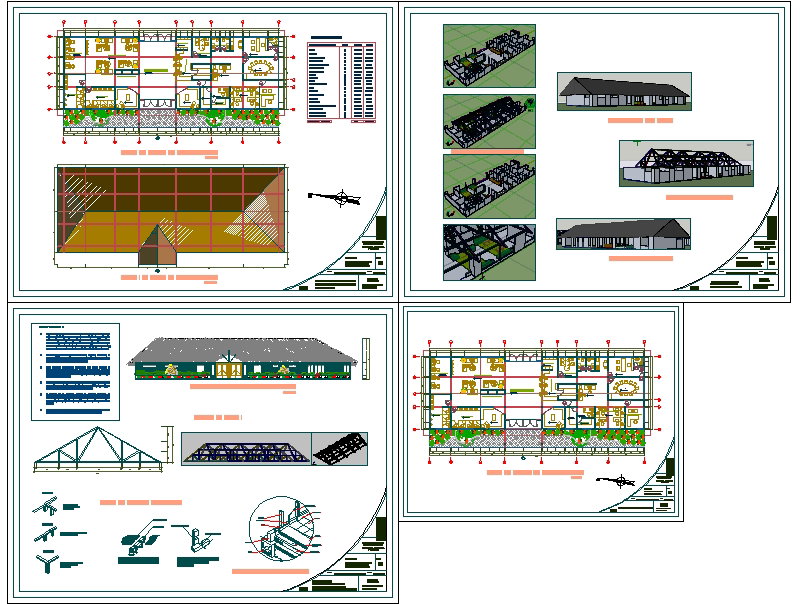

This Government Office Project Plan Elevation Section drawing presents a complete administrative building layout, including a detailed floor plan, site layout, roof framing plan, and structural system drawings. The floor plan clearly shows office rooms, meeting areas, reception zone, circulation corridors, service rooms, and sanitary facilities with accurate d to d dimensions. Grid alignment, wall thickness, door window positioning, and landscape frontage are precisely drafted to support construction execution and planning coordination.
