Museum Building Design with Floor Plans Sections and Elevations

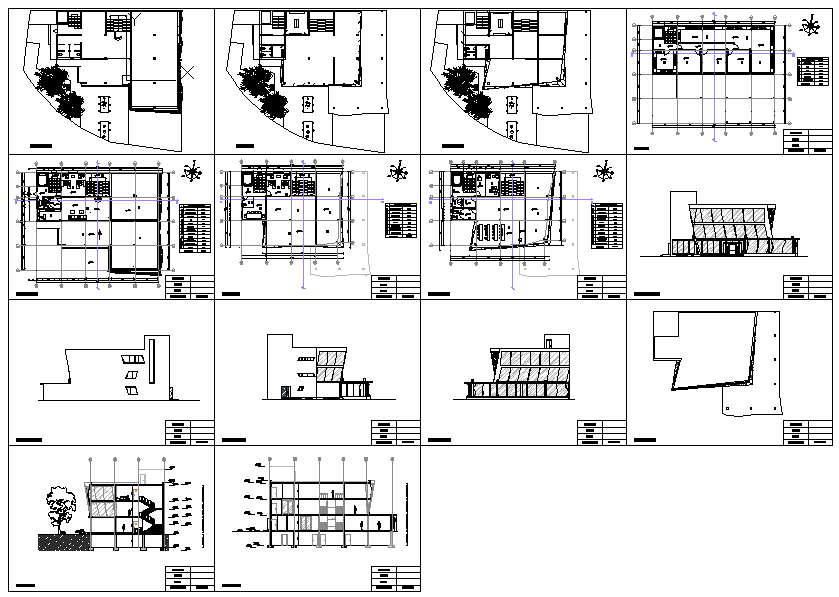

This AutoCAD DWG file presents a detailed museum building design developed with a strong focus on architectural freedom, transparency, and functional clarity. The drawing set includes complete floor plans, sections, elevations, and site layout, clearly illustrating the relationship between public and private spaces. The museum is designed with an unusual and expressive form, combining sharp and curved lines with transparent glass walls to create visual openness and connectivity. The ground floor plan shows spaces such as a forecourt and public entrance of 50 square meters, a lobby of 42.4 square meters, curator's office, a shop, male and female toilets, reception area, virtual gallery of 88.3 square meters, an archaeology and numismatic hall of 92 square meters, and public stairs, with a total area of 353.3 square meters.

The upper floors continue the functional organization with clearly measured layouts. The first floor includes temporary exhibition space, public lobby, administration office, conference room, ethnology and history hall, and stairs totaling 252.4 square meters. The second floor contains a lecture room, a theater, a director's office, a secretary, toilets, and a lobby with a total area of 253.4 square meters. The basement plan includes storage, depot, sprinkler system, air conditioning, and heating systems totaling 201.3 square meters. All drawings are prepared to scale with dimensions, making this DWG file suitable for architects, civil engineers, interior designers, and builders.
