Reinforced Brick Wall Design Detail with Section Elevation Plan

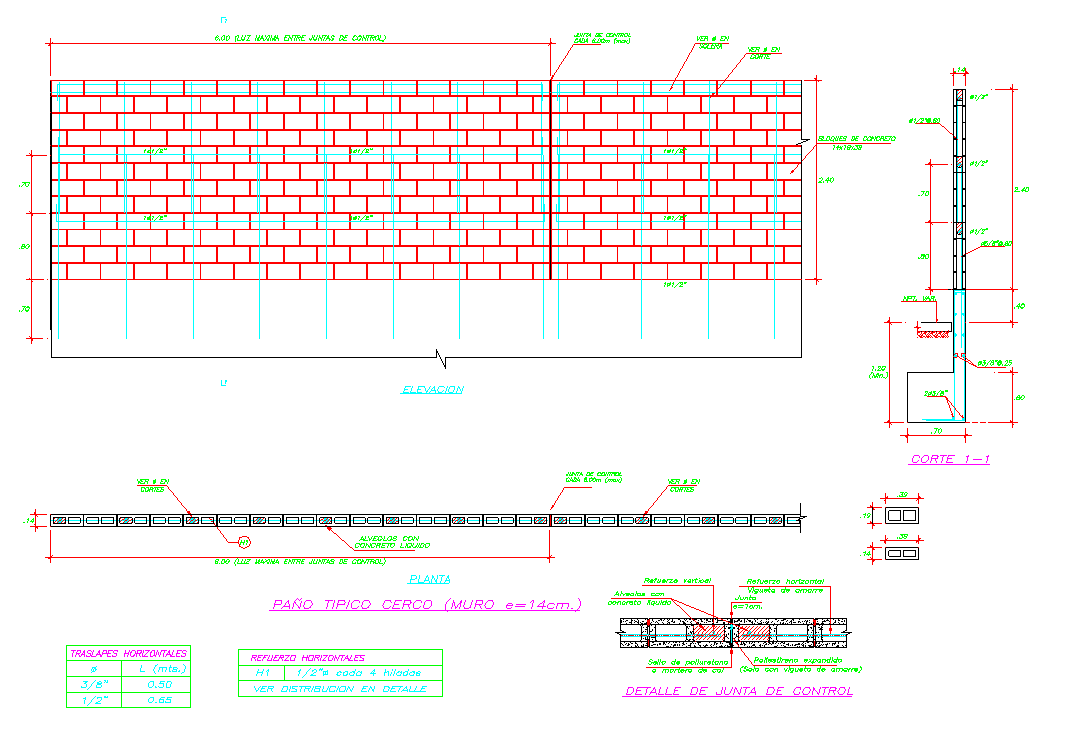

This wall design detail drawing is prepared in AutoCAD format and shows a reinforced brick masonry wall with clear plan, elevation, and sectional views. The drawing includes wall height, length, and thickness with accurate dimensional annotations. Horizontal and vertical reinforcement placement is detailed for structural stability. Control joint detailing is provided to manage movement and cracking. The section explains foundation connection, concrete base, and embedment depth. Material layers such as brick units, mortar joints, and concrete elements are clearly identified. The drawing supports precise construction and on-site execution for boundary or structural walls.
