Reinforced Floor Slab Connection With RCC Beam Detail Drawing

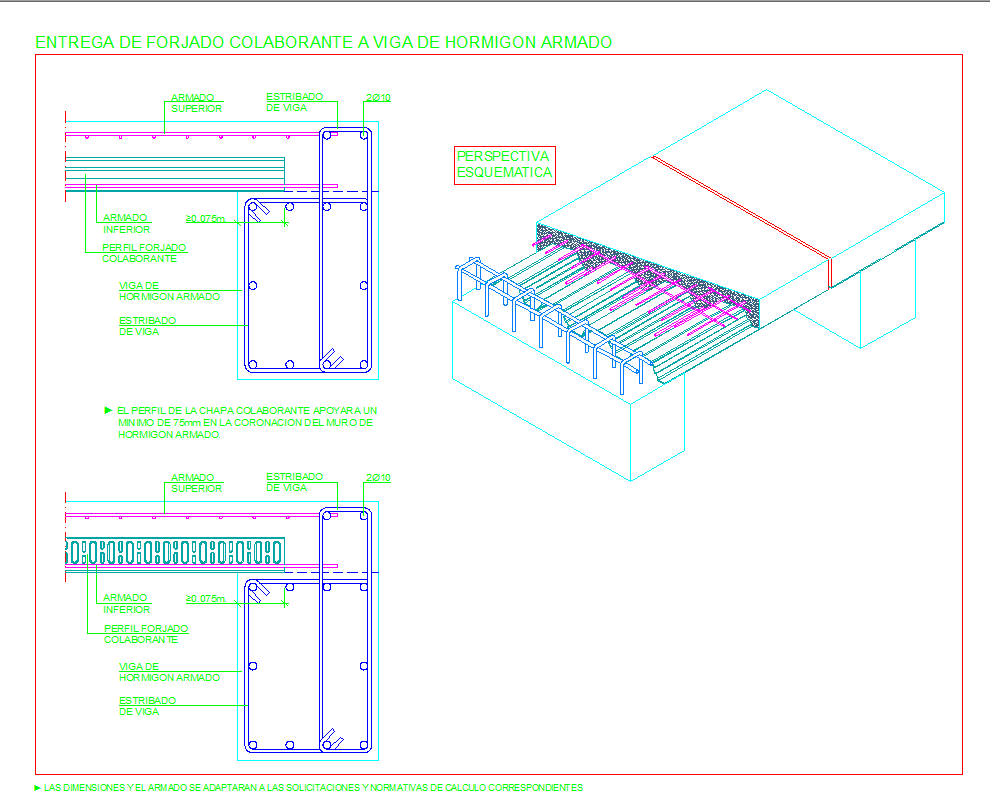

This composite slab and concrete beam structural connection drawing presents detailed construction information for reinforced concrete floor systems. The drawing illustrates the connection between the composite metal deck slab and the reinforced concrete beam, including upper and lower reinforcement placement, beam stirrups, slab profile alignment, and bearing support details. Clear sectional views show slab thickness, beam depth, reinforcement cover, and minimum support length of 75 mm at the concrete wall or beam crown. An isometric schematic view explains the load transfer mechanism between the slab and beam, making the drawing easy to understand for practical execution. All dimensions, reinforcement directions, and structural elements are clearly annotated for professional use in building projects.

In addition to section details, the drawing includes technical notes related to reinforcement adaptation, spacing, and construction tolerance as per structural calculation requirements. The composite slab profile layout, beam reinforcement cage, and stirrup positioning are accurately coordinated to ensure structural continuity and safety.
