Residential Gate Design Detail Drawing With Height Width Measurements

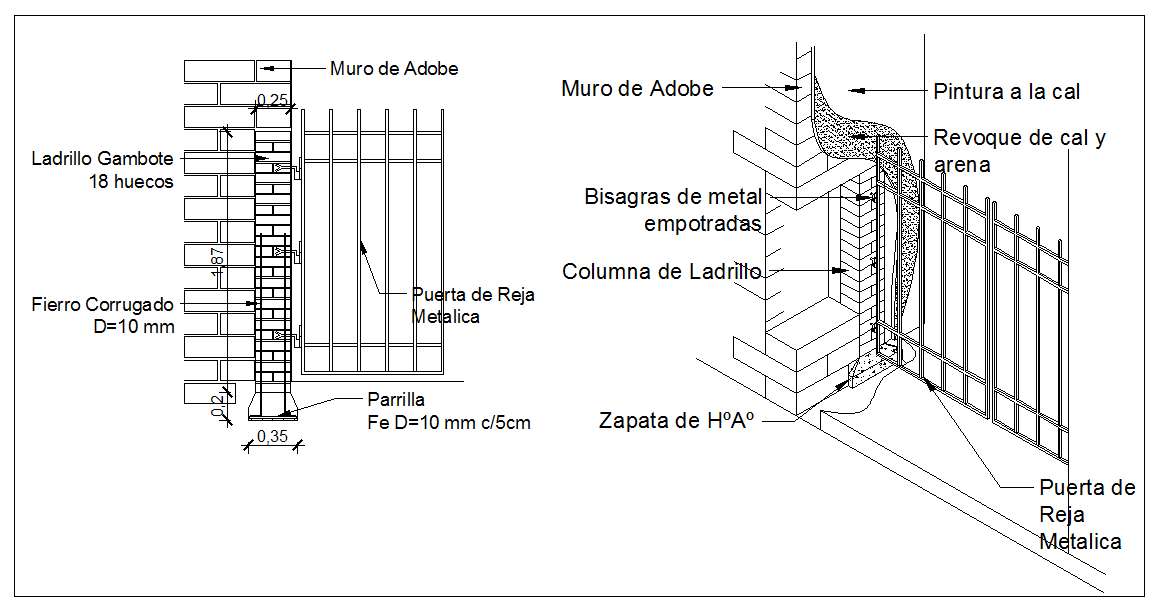

This gate design detail drawing is prepared in AutoCAD format and illustrates a clear elevation view with accurate structural proportions for residential and boundary applications. The drawing defines gate height generally around 1800 mm to 2100 mm and width ranging from 3000 mm to 3600 mm, suitable for vehicle and pedestrian entry. It includes frame thickness, vertical and horizontal member spacing, hinge positioning, and opening clearance, helping architects and civil engineers plan secure and functional entry points. The gate detail drawing supports proper alignment with compound walls, pillars, and driveway levels while maintaining design balance and access safety.
