Modern High Rise Apartment Building Design Drawing With Plans

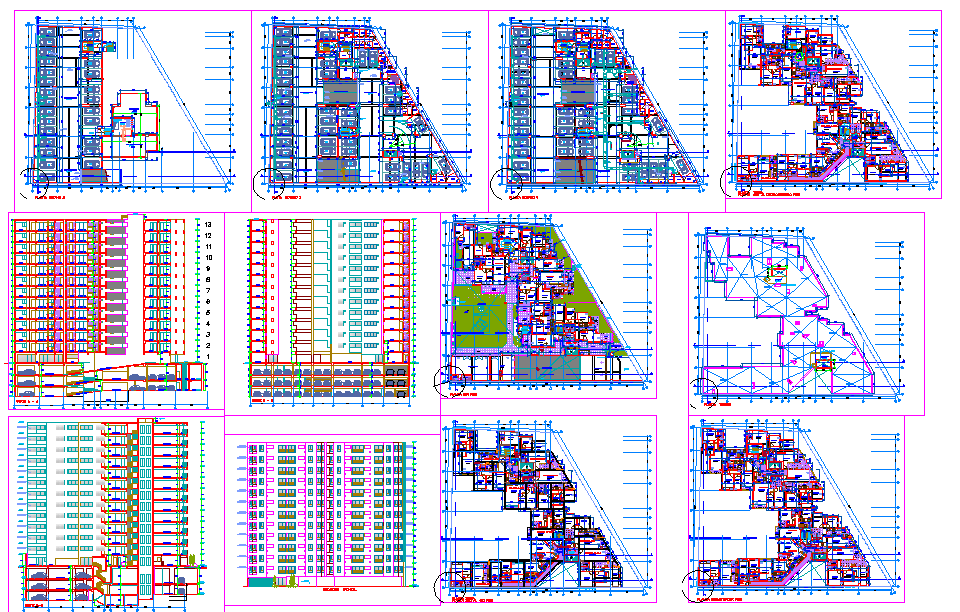

This modern high-rise apartment building design drawing presents a complete architectural layout prepared for residential development planning. The drawing set includes detailed presentation plans for all floors, clearly showing unit distribution, circulation cores, lift lobbies, staircases, and service shafts with accurate measurements. Typical floor plans illustrate 2 BHK and 3 BHK apartment layouts with room proportions, wall thicknesses, and internal planning logic. Section drawings explain floor-to-floor heights, slab levels, vertical circulation continuity, and structural alignment across the full building height.

The drawing also covers front, side, and rear elevation designs defining façade composition, balcony alignment, window placement, and overall building proportions. Structural coordination is supported through clearly marked grids, level references, and dimensional annotations. Additional drawings show parking levels, common areas, and open space planning within the building footprint. All plans and elevations are prepared to scale, ensuring clarity in design intent and execution. This modern high-rise building design drawing supports architects, planners, and engineers in understanding apartment planning, vertical organization, and construction coordination directly from the AutoCAD drawing set.
