Sliding Window Detail DWG with Measurements for Architects Designers

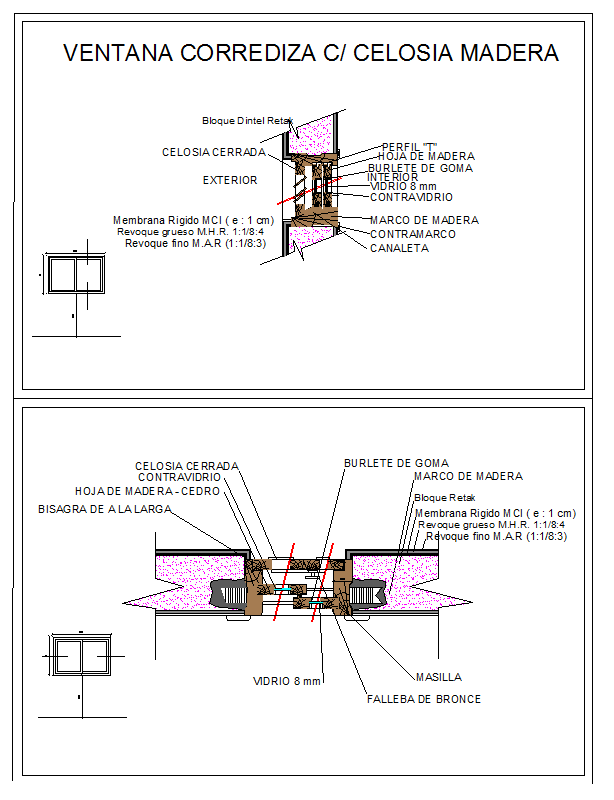

This Sliding Window Detail Drawing is prepared in AutoCAD format and presents a clear representation of window construction with precise measurements. The drawing includes window frame sections, sliding shutter panels, glass thickness, track positioning, and fixing details. All dimensions are accurately marked to support correct fabrication and installation. Sectional and elevation views explain the alignment of sliding panels, frame depth, sill level, and overall window height and width, making this drawing useful for residential and commercial building designs.

The Sliding Window Detail DWG file is suitable for architects, civil engineers, interior designers, and builders who require reliable CAD drawings for project execution. The file can be directly used in AutoCAD, Revit, 3ds Max, and Google SketchUp for coordination and detailing purposes. With clearly defined measurements, fixing positions, and section layouts, this drawing helps reduce drafting effort and ensures accuracy in window detailing. This professional DWG file supports efficient design documentation and provides a ready reference for sliding window construction in modern architectural projects.
