Girder Bridge Structure Layout with Span Pier and Deck Details

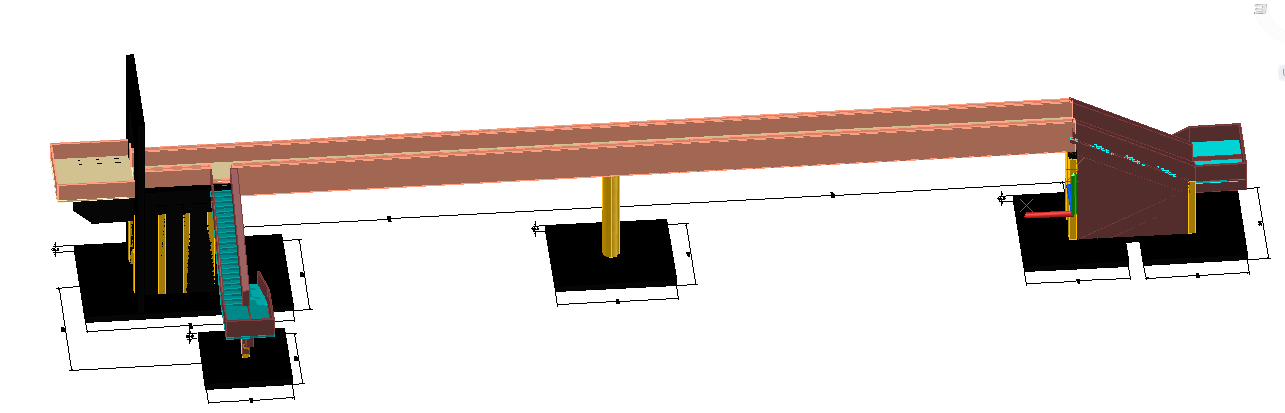

This girder bridge structure layout presents a detailed 3D model showing span alignment, pier positioning, and deck support configuration. The drawing illustrates a straight horizontal girder span supported by central pier columns and end abutment foundations. Base foundation blocks are clearly defined beneath each pier and support element, ensuring structural stability and load transfer accuracy. The deck beam runs continuously across the span with visible connection plates, end bearing zones, and alignment references. Structural support spacing and footing dimensions are indicated to assist in practical modeling and execution planning.
