Plumbing Utility Layout Plan with Tank Pump Room 1in Meter Detail

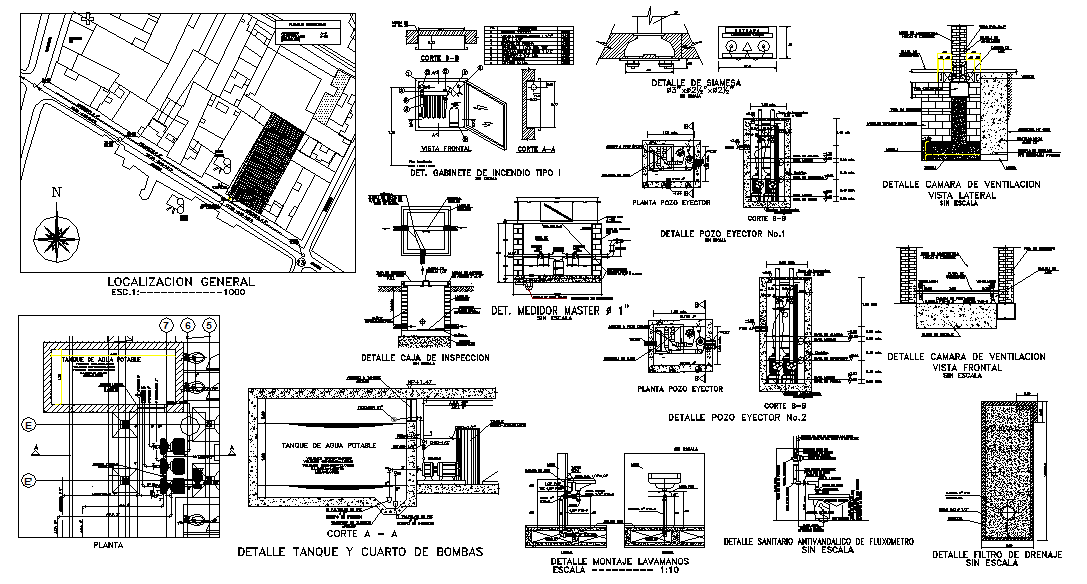

This plumbing utility layout plan presents a complete water supply and drainage system drawing, including a general location plan at scale 1 1000, an underground water tank section A-A, and a detailed tank and pump room arrangement. The drawing clearly illustrates potable water tank layout, pump installation configuration, and piping coordination within the utility layout plan. It includes a fire cabinet type 1 detail with front and section views, a master meter 1-inch installation detail, and an inspection chamber construction layout. Ejector pit detail No 1 and No 2 are provided with plan and section views showing internal structural dimensions and piping connections.
