Concrete Foundation Wall Detail Drawing with Brick Support Section

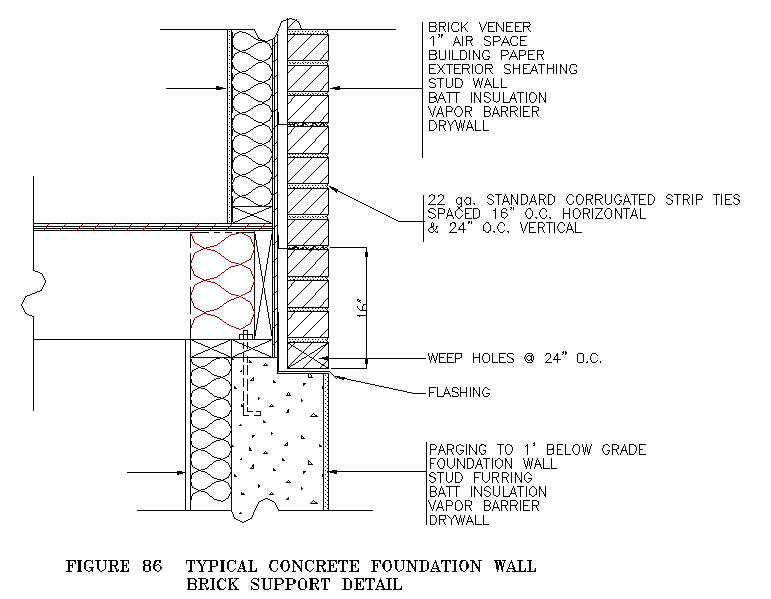

This concrete foundation wall detail drawing presents a clear sectional design illustrating brick veneer support over a concrete foundation wall, prepared in AutoCAD format for construction documentation. The drawing includes a brick veneer layer with a 1-inch air space, exterior sheathing, building paper, stud wall, batt insulation, vapor barrier, and internal drywall finish. Structural details such as 22-gauge standard corrugated strip ties spaced at 16 inches on center horizontally and 24 inches on center vertically are clearly indicated. The brick support shelf dimension of 16 inches is shown along with flashing placement and weep holes provided at 24 inches on center to ensure proper moisture drainage and wall durability.

This foundation wall detail design drawing is suitable for architects, civil engineers, builders, and construction professionals working on residential and light commercial buildings. The AutoCAD DWG file allows easy modification and coordination with architectural and structural layouts using AutoCAD, Revit, 3ds Max, or SketchUp. The clear labeling of material layers, insulation systems, and moisture protection components supports accurate execution and quality construction practices. This drawing helps professionals understand brick support conditions, foundation wall buildup, and drainage detailing, making it a valuable CAD resource available through a Cadbull subscription.
