Concrete Column Detail DWG with Steel Beams, Floating Floor and Blocks

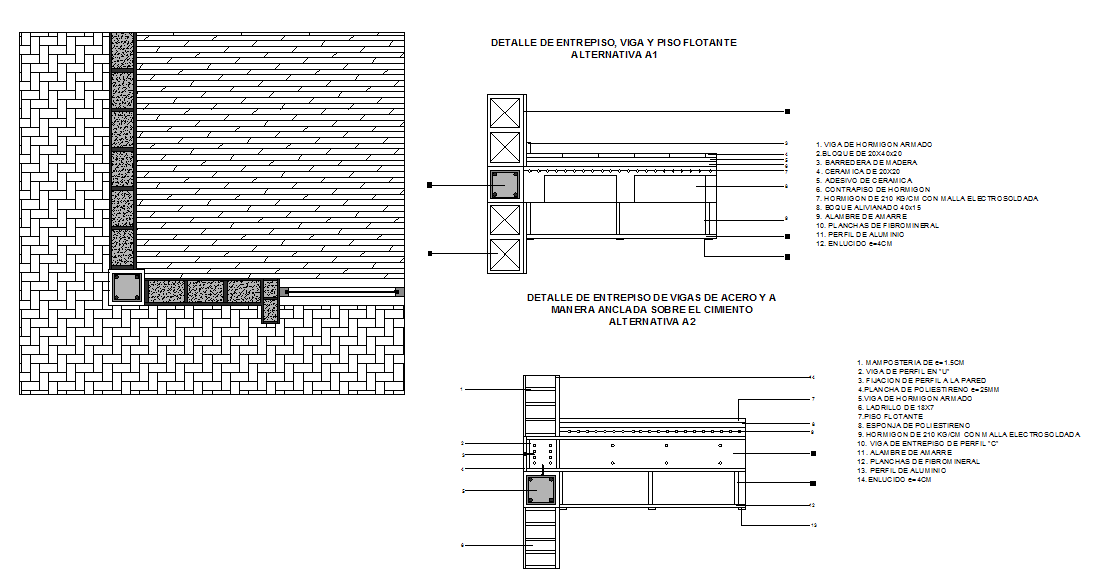

This Concrete Column Detail DWG provides a comprehensive layout of reinforced concrete columns integrated with steel beams and floating floor systems. The drawing highlights precise dimensions, including masonry blocks of 20x20 cm, reinforced concrete beams, and concrete slabs with 210 kg/cm² strength reinforced with electro-welded mesh. Each element is labeled clearly, including aluminum profiles, fiberboard panels, adhesives, and finishing plaster of 4 cm thickness, making it ideal for architects, civil engineers, and builders for accurate structural planning.

The file illustrates two alternative designs: Alternative A1 shows concrete columns with wooden bars and ceramic finishes, while Alternative A2 details steel beams anchored over the foundation with floating floors. All measurements, beam spacing, and reinforcement details are meticulously documented for construction and design implementation. Compatible with AutoCAD, 3D Max, Revit, and SketchUp, this DWG file allows professionals to integrate detailed column designs into building models efficiently. Subscribing to cadbull.com provides access to this and similar high-quality structural detailing files, enabling faster project execution and improved design accuracy.
