Architectural Door Design Drawing with Elevation Sections Details

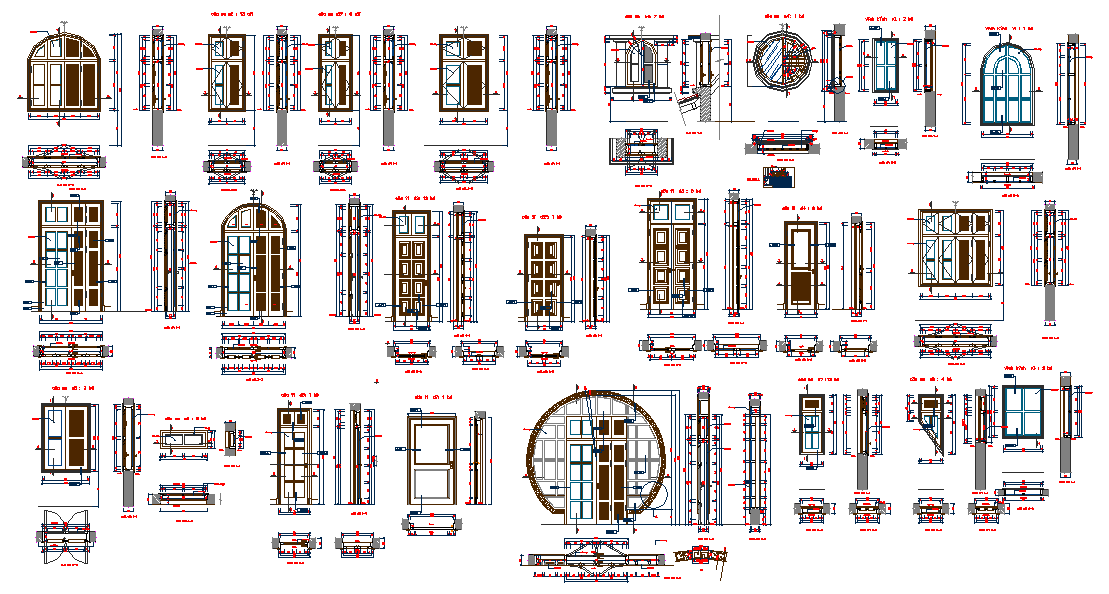

This architectural door design drawing is provided in AutoCAD DWG format and presents a comprehensive set of door design details for residential and commercial buildings. The drawing includes multiple door elevations with clear representations of single and double-leaf doors, arched door profiles, and framed door systems. Accurate measurements are shown for door height, width, frame thickness, shutter dept,h and panel spacing to support precise fabrication and installation. Sectional details explain frame fixing, g-wall junctions, hinge placement, and threshold levels for construction clarity.

The drawing further covers detailed door sections, and plan references that illustrate opening directions, hardware positioning,g and frame alignment with wall finishes. Vertical and horizontal sections provide dimensional control for lintel levels, sill heights, and clear opening sizes. Material thickness and joint details are clearly annotated to assist architects,s interior designers,s and builders during planning and execution. This door design drawing with measurements ensures accurate coordination between architectural elements and supports professional CAD-based detailing for site implementation.
