RCC Column Footing Drawing with Panel Wall Anchorage Details

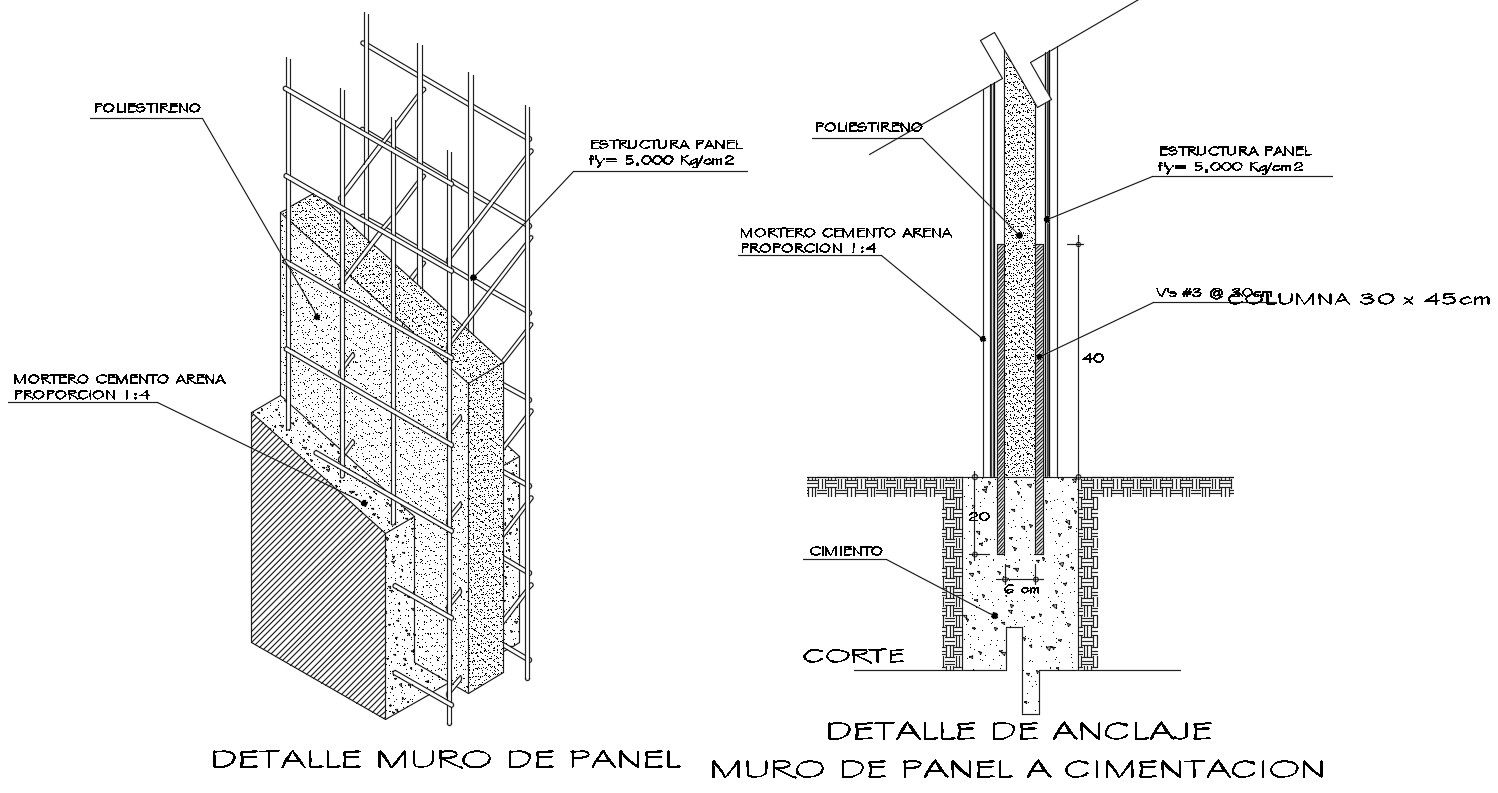

This RCC column footing drawing presents a detailed AutoCAD representation of column foundation construction with panel wall anchorage details. The drawing illustrates a reinforced concrete footing connected to a vertical RCC column, clearly showing the column size of 30 × 45 cm and anchoring depth into the foundation. Structural details include reinforcement bar placement, anchorage lengths, and concrete footing thickness. The panel wall system is shown with internal polystyrene insulation, cement-sand mortar layers in a 1:4 proportion, and structural steel mesh integrated within the panel. Material annotations define compressive strength values, such as fy 5000 kg per cm2 for reinforcement and cement-based concrete work for footing and column stability.
