Building Section CAD DWG With Floor Slab Wall And Roof Details

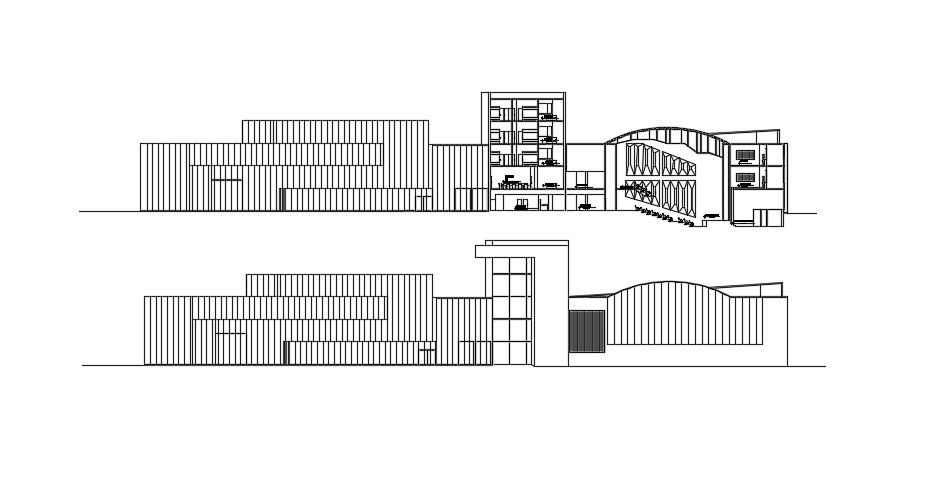

This Building Section CAD DWG file provides a detailed sectional drawing of a multi-level building, illustrating floor slabs, wall construction, roof structure, doors, windows, and staircase placement. Standard dimensions are shown for precise planning, including floor slab thickness 150 mm, wall thickness 230 mm, ceiling height of 3000 mm, and roof slope details. The section highlights vertical alignment, room heights, stair risers, and structural elements, making it ideal for architectural and construction documentation. The CAD file is properly layered, scaled, and annotated for professional use in building design.
