Detail of Wooden Frame DWG with 10x10 Column Beam Floor System

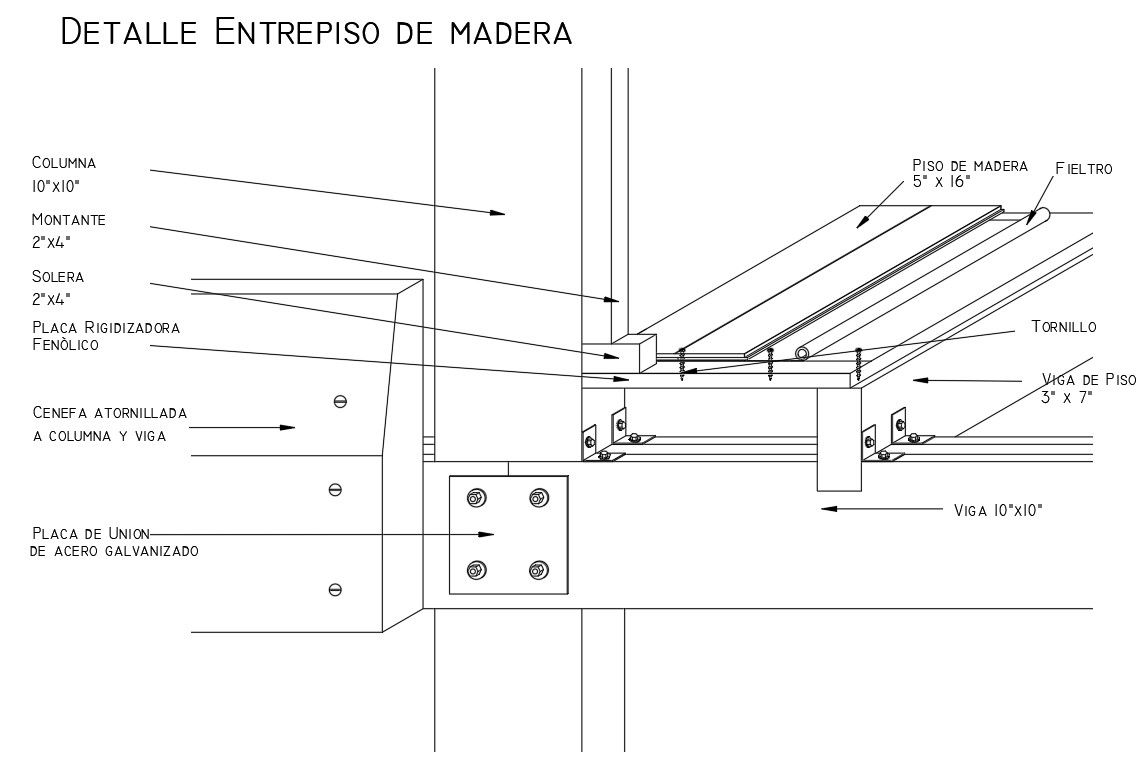

This Detail of the wooden frame DWG file presents a clear and technically accurate construction drawing focused on a timber floor and structural framing system. The drawing illustrates a 10"x10" wooden column connected with a 10"x10" main beam and a 3"x7" floor beam, showing proper load transfer and framing alignment. It includes a wooden floor finish sized 5"x16", felt layer placement, and screw fixing details for secure floor installation. The drawing also highlights a phenolic stiffening plate, 2"x4" sole plate, 2"x4" stud members, and a rigid connection between column and beam using galvanized steel joint plates and bolted valance components.

This AutoCAD DWG drawing is ideal for understanding wooden frame floor detailing, beam-to-column junctions, and timber construction methods used in residential or light commercial projects. Accurate dimensions, clean line work, and clear annotations make it suitable for architectural detailing, structural coordination, and interior construction planning. The file is useful for architects, civil engineers, interior designers, builders, and CAD professionals working with AutoCAD, 3ds Max, Revit, or SketchUp. Downloading this drawing from cadbull.com through a subscription provides access to a professionally prepared wooden frame detail that supports precise drafting, efficient project execution, and reliable timber construction documentation.
