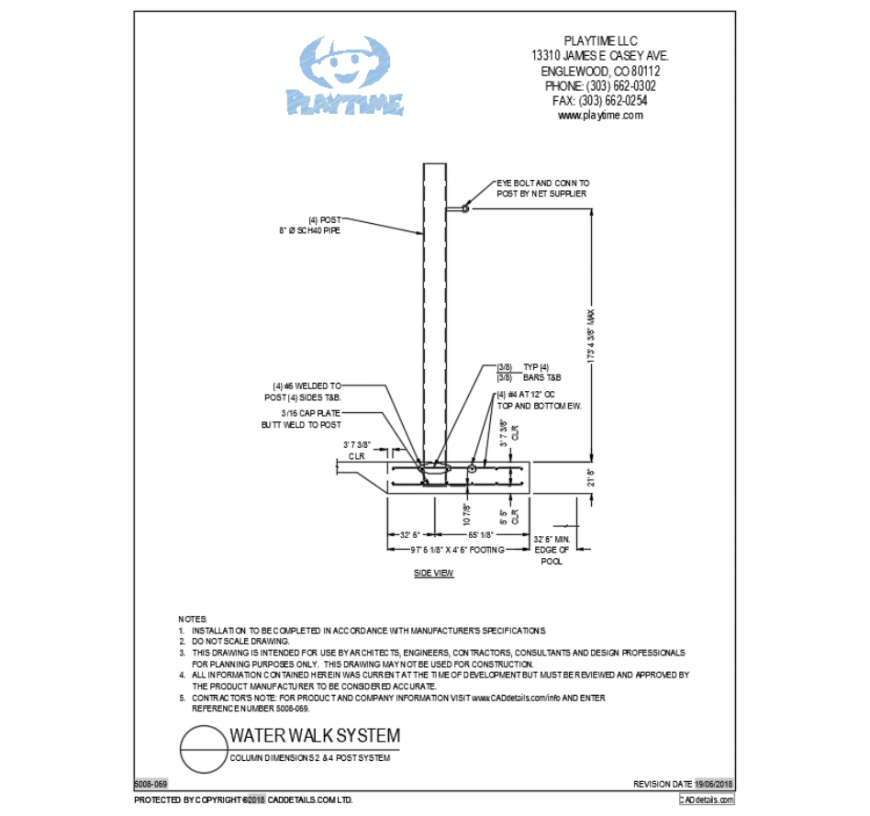

Column dimensions details of two and four post system water bridge dwg file


Description

Column dimensions details of two and four post system water bridge that includes a detailed view of sch pipe, eye bolt and conn to post by net supplyer, bars, top and bottom ew, footings, side view, age of pool, dimensions, measures, cap plate butt weld to post notes, specifications and much more of column details.




File Type: DWG File ID: 130865

Uploaded by:


Eiz Luna
New-Zealand
