5 BHK House Plan CAD Drawing DWG File with Garage and Room Sizes

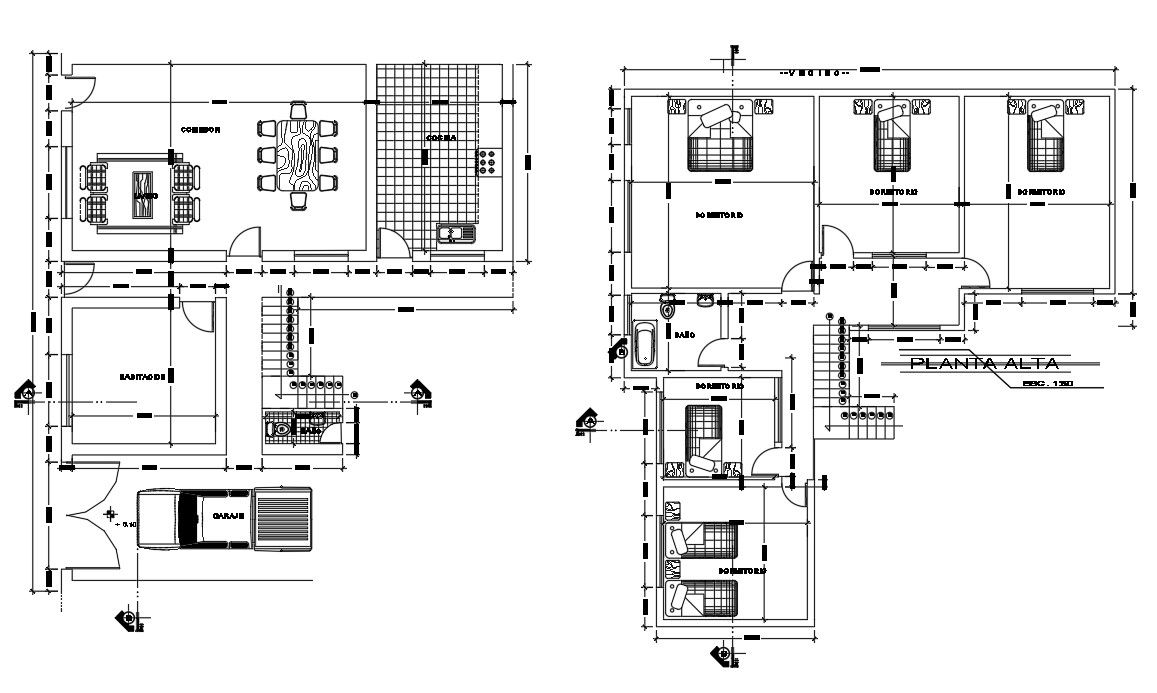

This 5 BHK House Plan CAD Drawing DWG file presents a detailed ground floor and first floor residential layout with complete space planning and dimension annotations. The ground floor plan includes a covered garage, living room, dining area, kitchen with utility space, guest bedroom, common bathroom, staircase, and storage zone. Each room is drafted with clear length and width measurements, door opening directions, window placements, and circulation pathways for functional movement. The dining and living areas are arranged with furniture layouts, while the kitchen section displays counter alignment, sink location, and cooking platform dimensions for practical usage.
