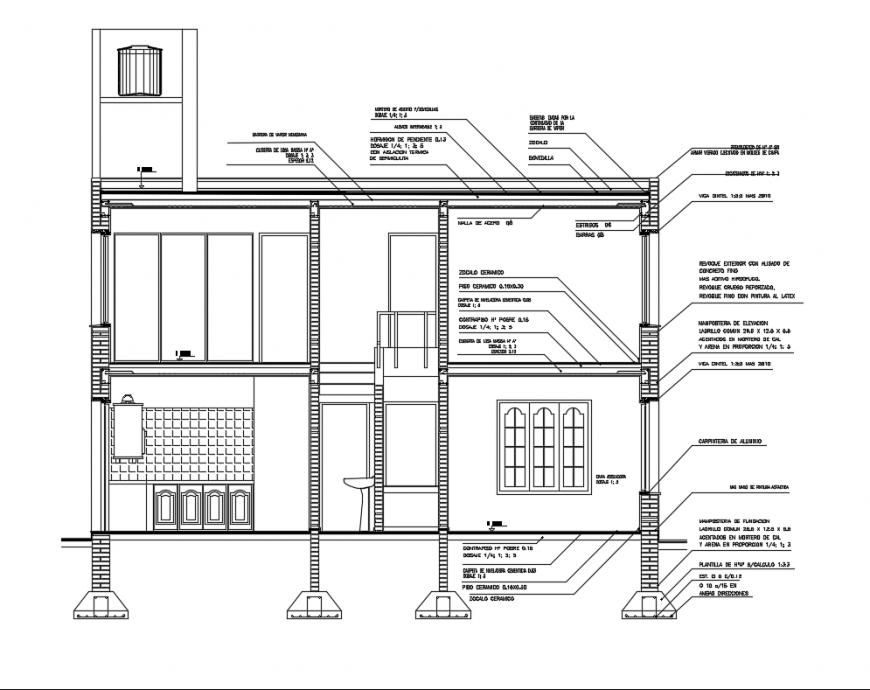

Housing two levels facade section-constructive details with terrace dwg file


Description

Housing two levels facade section-constructive details with terrace that includes a detailed view of flooring view, wall design, water tank view, wall construction, balcony view, doors and windows view, memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type  and , soil  burried wall closure type  and , exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of house section.





File Type: DWG File ID: 133338

Uploaded by:


Eiz Luna
New-Zealand
