Bungalow Society Layout Plan with Plot and Road Network Details Design

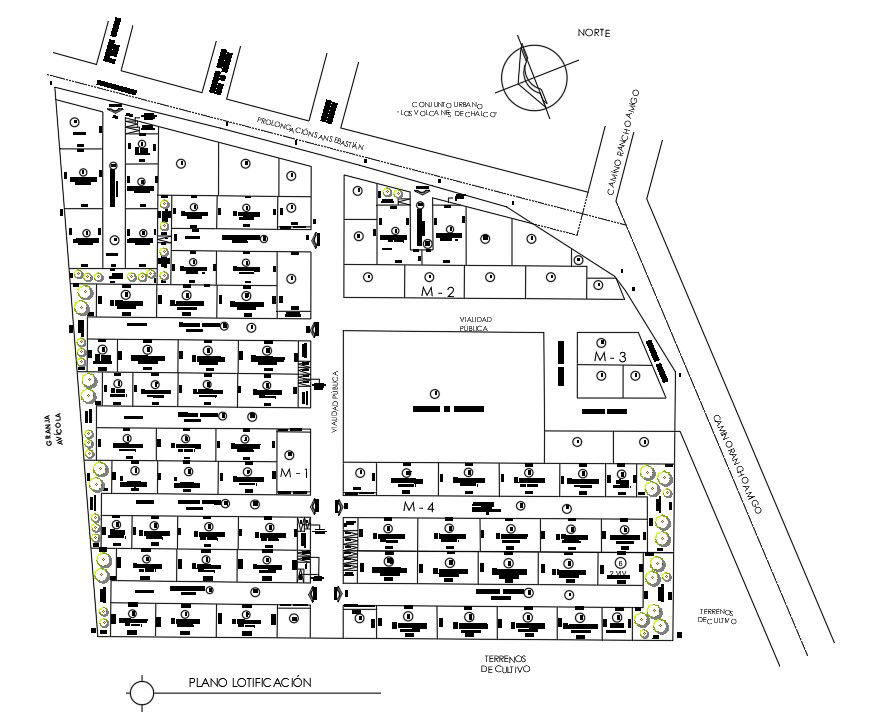

Bungalow society layout plan drawing presents complete house planning of society with clearly divided residential plots, internal roads, and public utility areas prepared in accurate AutoCAD format. The plan shows organized plot blocks labeled M 1, M 2, M 3, and M 4 with systematic road network connections. Internal road widths are proportioned approximately from 6.00 m to 9.00 m, providing access to individual bungalow plots. The layout includes a central public open space, a marked public utility zone, and surrounding access roads connecting to main external roads. Plot divisions are arranged in rectangular and corner configurations for efficient land utilization and circulation planning.
