Structure Beam Designs 1ft 1in Depth Shop Layout 6ft Passage

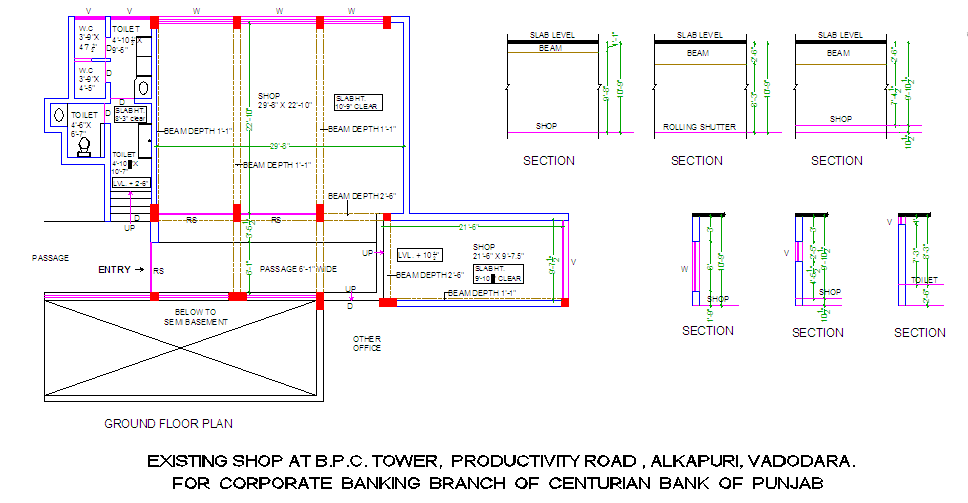

Structure Beam Design 1ft 1in Depth Shop Layout 6ft Passage is a detailed Structural Beam CAD drawing prepared for commercial building planning and execution. This AutoCAD structural beam design includes a beam depth of 1ft 1in and 2ft 6in at specified spans, clearly marked slab levels, rolling shutter section, and shop layout dimensions. The ground floor plan illustrates shop units measuring approximately 29ft 8in by 22ft 10in and 21ft 6in by 9ft 7in, along with a defined 6ft wide passage for circulation. Toilet detail layouts with internal fixtures and ventilation spacing are also included to support functional planning and service coordination.

This Structure Beam Design drawing provides sectional views showing slab level, beam alignment, and structural depth relationships for accurate construction reference. The layout integrates shop detail, toilet detail, and passage dimensioning within a coordinated structural framework.
