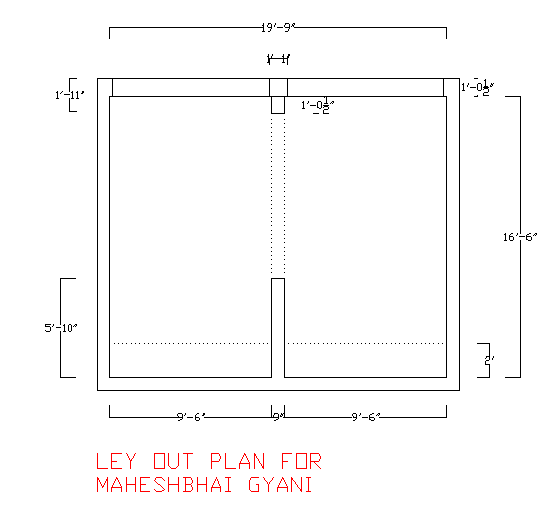

19 ft 9 in House Beam Layout Plan with Dimension Detail Drawing

This 19 ft 9 in House Beam Layout Plan with Dimension Detail is a professionally drafted structural drawing prepared in AutoCAD DWG format. The layout clearly illustrates beam positioning within the residential plan, including an overall width of 19 ft 9 in and segmented spans of 9 ft 6 in on both sides. Vertical and horizontal beam alignment is accurately represented with central beam support marking and wall thickness definition. The drawing includes detailed dimension annotations, such as 16 ft 6 in vertical span and sectional references to ensure precise structural planning and execution. The 19 ft 9 in House Beam Layout Plan with Dimension Detail provides clear structural coordination for residential construction projects. Beam spacing, support junctions, and layout symmetry are properly organized for load distribution clarity.
