Staircase Detail Drawing Plan Section With Railing Layout file

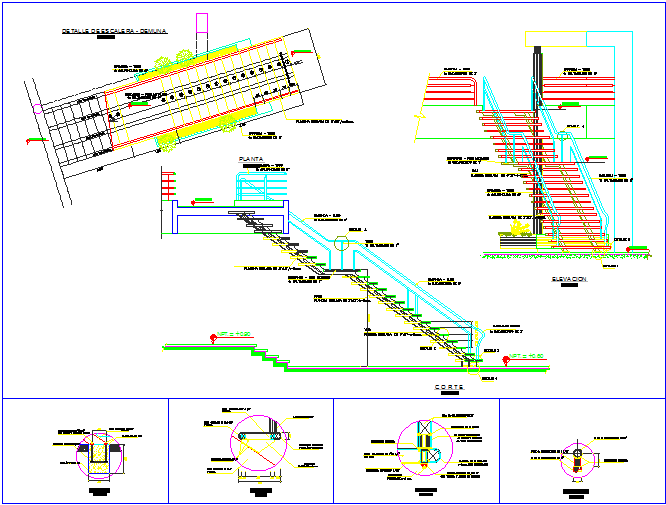

This AutoCAD staircase detail drawing includes a complete staircase detail drawing plan section with railing and clearly defined dimensions for accurate construction. The drawing shows tread depth 300mm, riser height 150mm, landing slab thickness, handrail height, and structural base support connection. Plan view, side elevation, and sectional details are provided with enlarged circular connection drawings for railing fixing detail and anchoring system. Staircase detail drawing plan section with railing helps architects, civil engineers, interior designers, and builders coordinate structural levels, step alignment, and safety standards within residential and commercial building layouts.
