Service Station Layout Plan 36m x 28m Roof and Structure Details

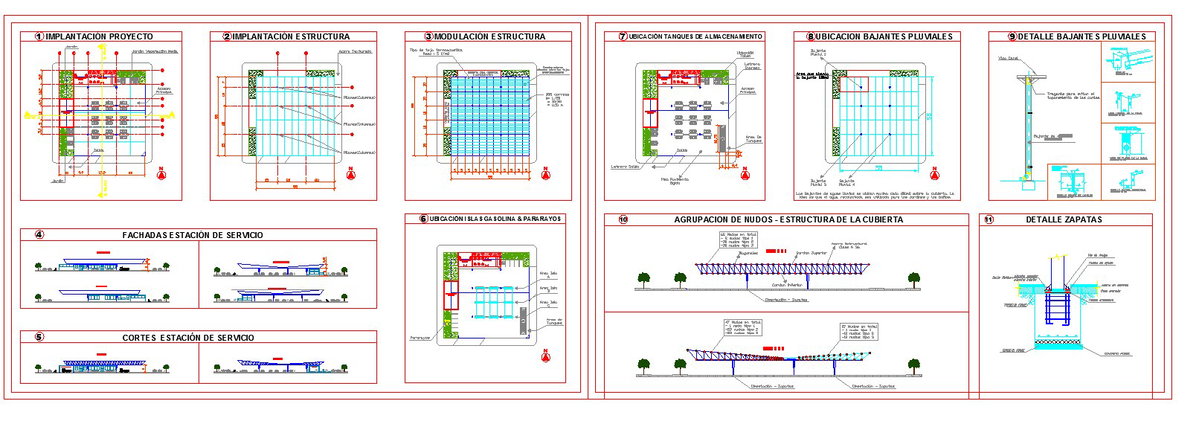

A Complete Service Station Layout Plan designed on a 36m x 28m site with detailed structural grid, roof framing system, and elevation drawings. This AutoCAD drawing includes project implementation layout, structural modulation plan, tank location planning, gasoline island positioning, and rainwater downpipe arrangement. The drawing clearly presents slab beam column alignment, roof truss grouping, and node connection detailing for efficient structural performance. Elevation and sectional views highlight canopy height, roofing slope, and foundation depth with accurate dimensions in meters. All measurements are professionally drafted to support architectural planning and civil execution.
