Metal Slab Roof Floor Section Construction Detailed structure

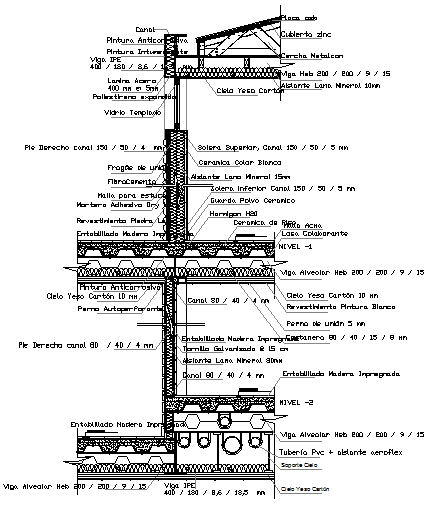

This metal slab roof floor section construction detail AutoCAD drawing presents a complete structural assembly with a layered roof and floor configuration. The file includes a metal slab structure detail with a section drawing, showing steel beam profile, alveolar beam connection, purlin alignment, corrugated metal deck placement, and concrete topping integration. Roof layers indicate zinc sheet covering, waterproof membrane, thermal insulation, and ceiling board installation. Floor build-up illustrates a metal deck slab system, reinforced concrete layer, finishing screed, and ceiling support framing. All structural components are clearly dimensioned for accurate fabrication and site coordination.
