Simple House Layout Plan with Foundation and Room Dimensions

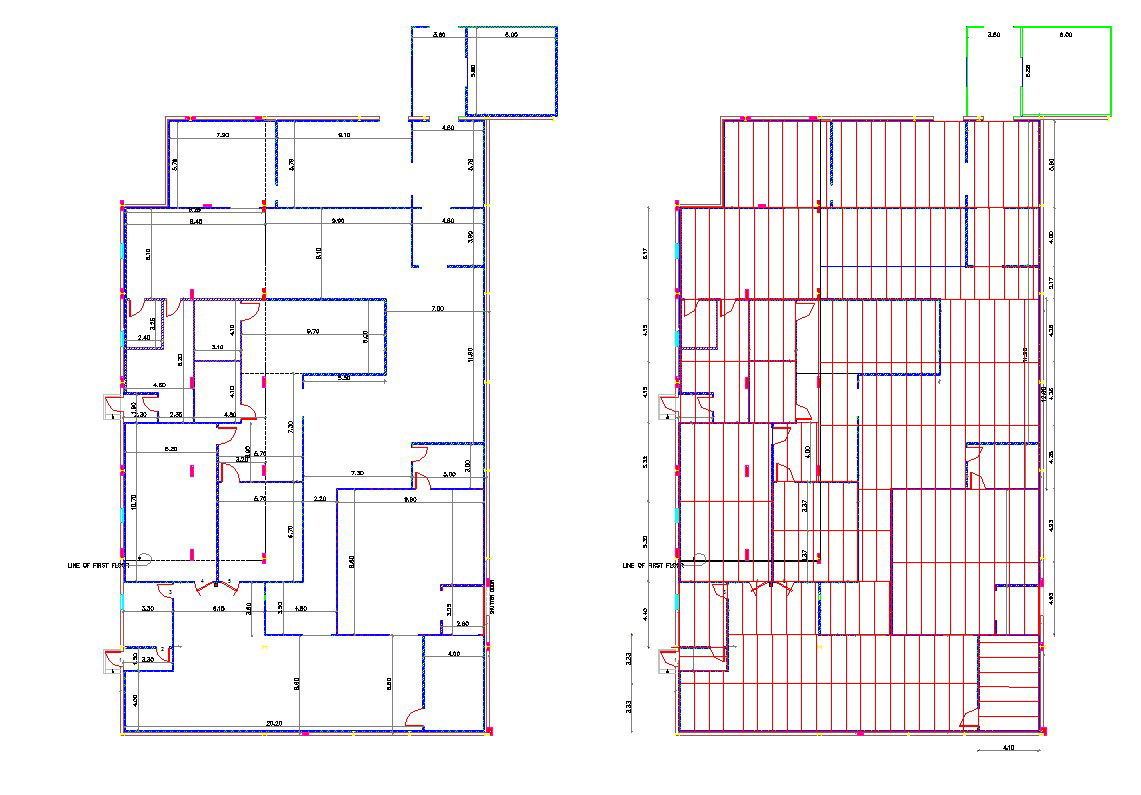

Simple house layout plan drawing presenting complete room arrangement with foundation detail and clear dimensional annotations. The plan shows overall building length of 20.20 m and width of 13.70 m with internal room sizes such as 5.40 m by 4.80 m, 4.00 m by 4.00 m, 3.10 m by 4.10 m, and circulation spaces marked with precise measurements. Door openings, wall thickness, partition layout, and entry positions are clearly drafted. The drawing also indicates line of first floor reference and staircase positioning for vertical connectivity within the layout. This simple house layout plan further includes foundation alignment detail coordinated with wall grid and structural base layout. Room dimensions, corridor widths, and external offsets are accurately labeled to support construction planning.
