Underground Water Tank Detail Plan Section Reinforcement Dimensions

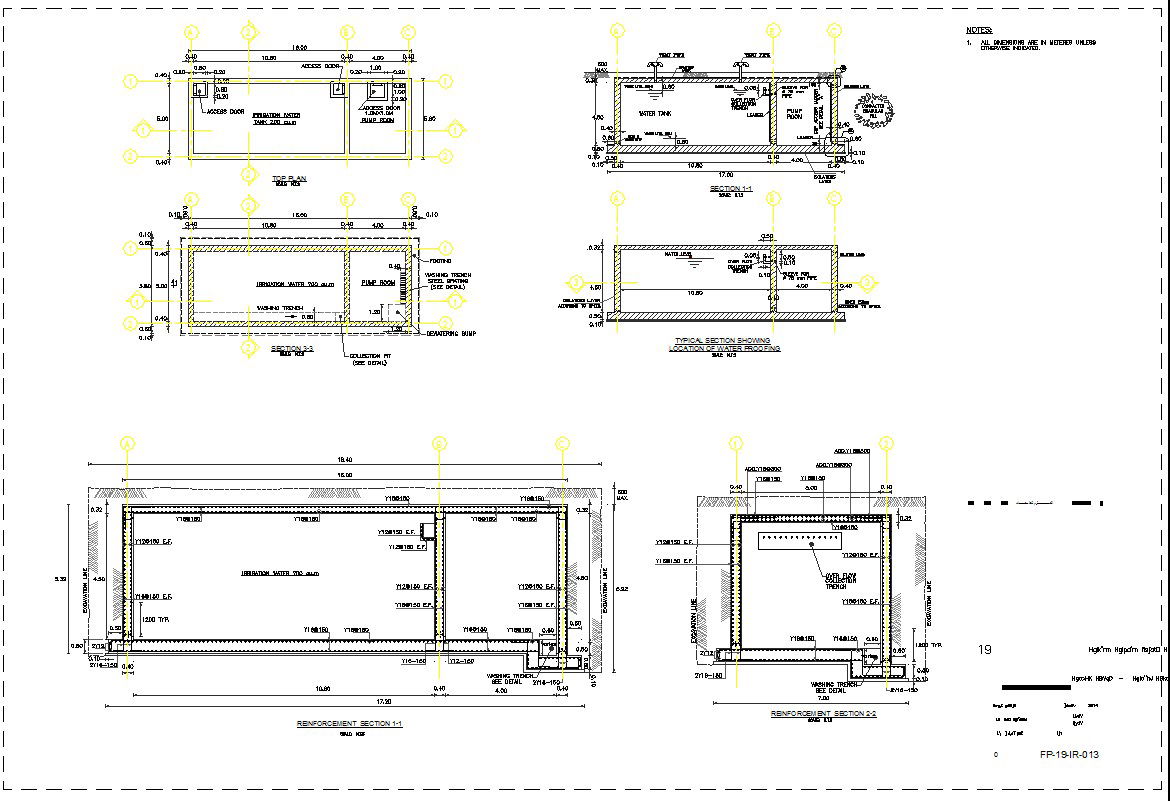

This underground water tank detail plan section reinforcement dimensions AutoCAD drawing presents a complete structural layout including top plan, longitudinal section 1 1, transverse section 2 2, and reinforcement section details with precise measurements. The plan defines the overall internal tank length of 17.00, external length of 18.40, wall thickness, slab depth, and partition wall alignment. Pump room layout, washing trench detail, dewatering sump, and access opening positions are clearly dimensioned for accurate installation. Waterproofing layers, concrete cover thickness, and base slab reinforcement spacing are illustrated to ensure durability and water-tight performance.
