Bungalow Roof Plan and Roof Structure Layout Detailed in Meters

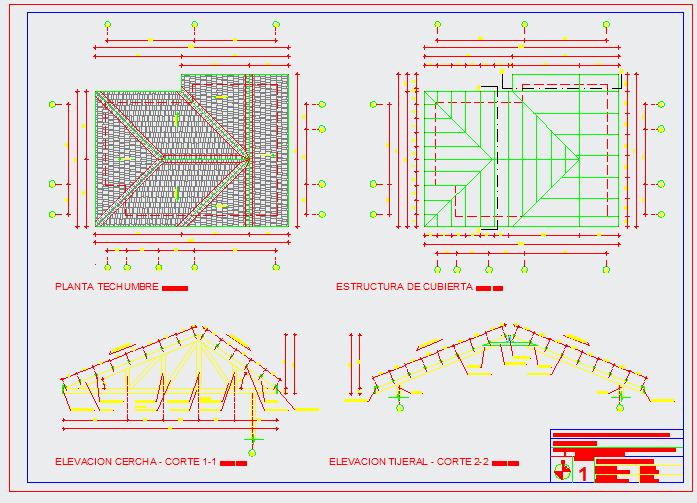

This AutoCAD drawing presents a complete roof plan and roof structure solution for a residential bungalow layout with all dimensions in meters. The file clearly illustrates the bungalow roof plan with precise horizontal measurements, ridge lines, hip lines, slope directions, and outer wall alignment. The roofing detail drawing includes structured beam placement, truss positioning, and structural grid references to define load transfer points. Section 1 1 elevation shows the cercha profile with measured heights, pitch angles, and structural member spacing for accurate construction execution.
