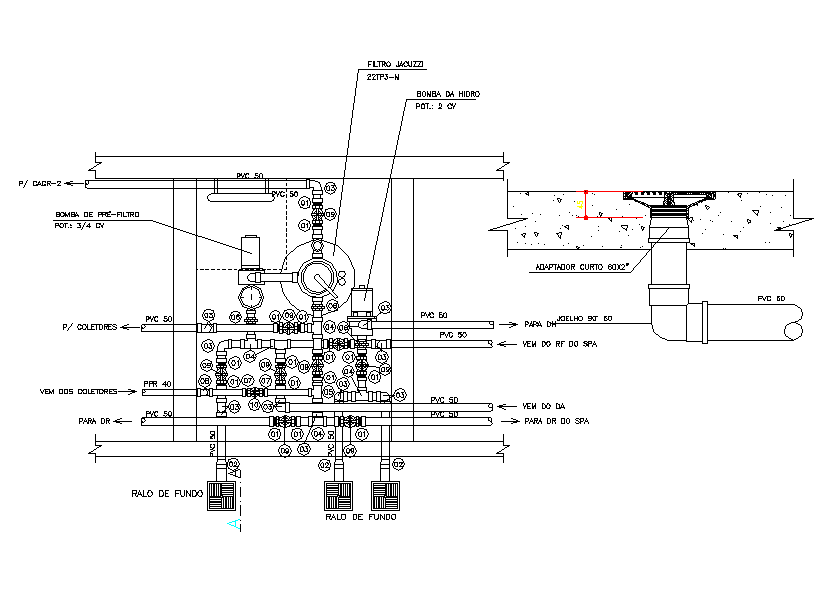

Piping detail & Machinery design in dwg file, Pre- filter pump, come from the collector, SHORT ADAPTER 50X1.1 / 2 ", REDUCTION SHELF 60X50, HAS REDUCTION 50X40, SHORT ADAPTER 40X1.1 / 4 ", etc detail.
