Steel Beam Structure Detail With 2 1 2 Inch Angle And Concrete Chain

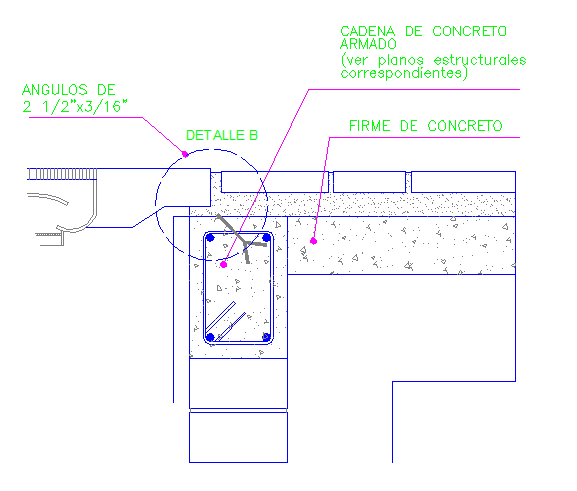

This steel beam structure detail drawing shows the connection layout between a steel beam element and reinforced concrete structural components. The section illustrates the installation of steel angles measuring 2 1 2 inch by 3 16 inch, which are used as support members within the beam connection detail. The drawing highlights a reinforced concrete chain beam positioned above the structural support area, which distributes structural load across the wall and beam assembly. A firm concrete slab layer is shown above the reinforced chain beam, providing structural rigidity and load transfer through the beam structure. Detail B indicates the precise steel reinforcement and connection location where the steel angle element is embedded and anchored within the reinforced concrete beam section to maintain structural stability.
