Concrete Slab Section Detail With 10cm Precast Slab And Guard Beam

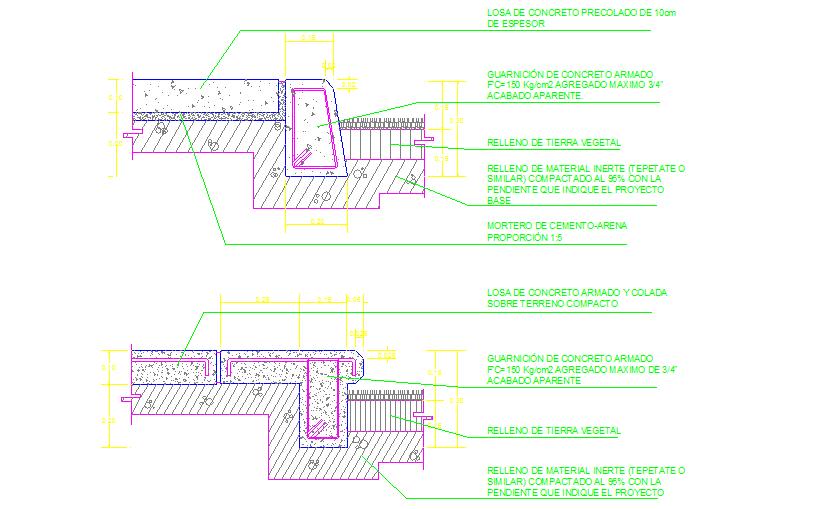

This concrete slab section detail drawing illustrates the structural composition of a floor slab system with precast and reinforced concrete components. The drawing shows a precast concrete slab with a thickness of 10 cm placed above a structural base layer. A reinforced concrete guard beam with concrete strength f c 150 kg per cm2 and a maximum aggregate size of three-quarters inch is integrated into the slab structure to provide additional load distribution and structural stability. The section also illustrates cement sand mortar bedding prepared with a proportion of 1 to 5 which supports the slab alignment and bonding. Below the slab system, a compacted inert material layer, such as tepetate or similar soil, is shown compacted to approximately 95 percent density following the slope defined in the base project design. Vegetal soil fill is placed above the compacted base layer in areas surrounding the structural beam section.
