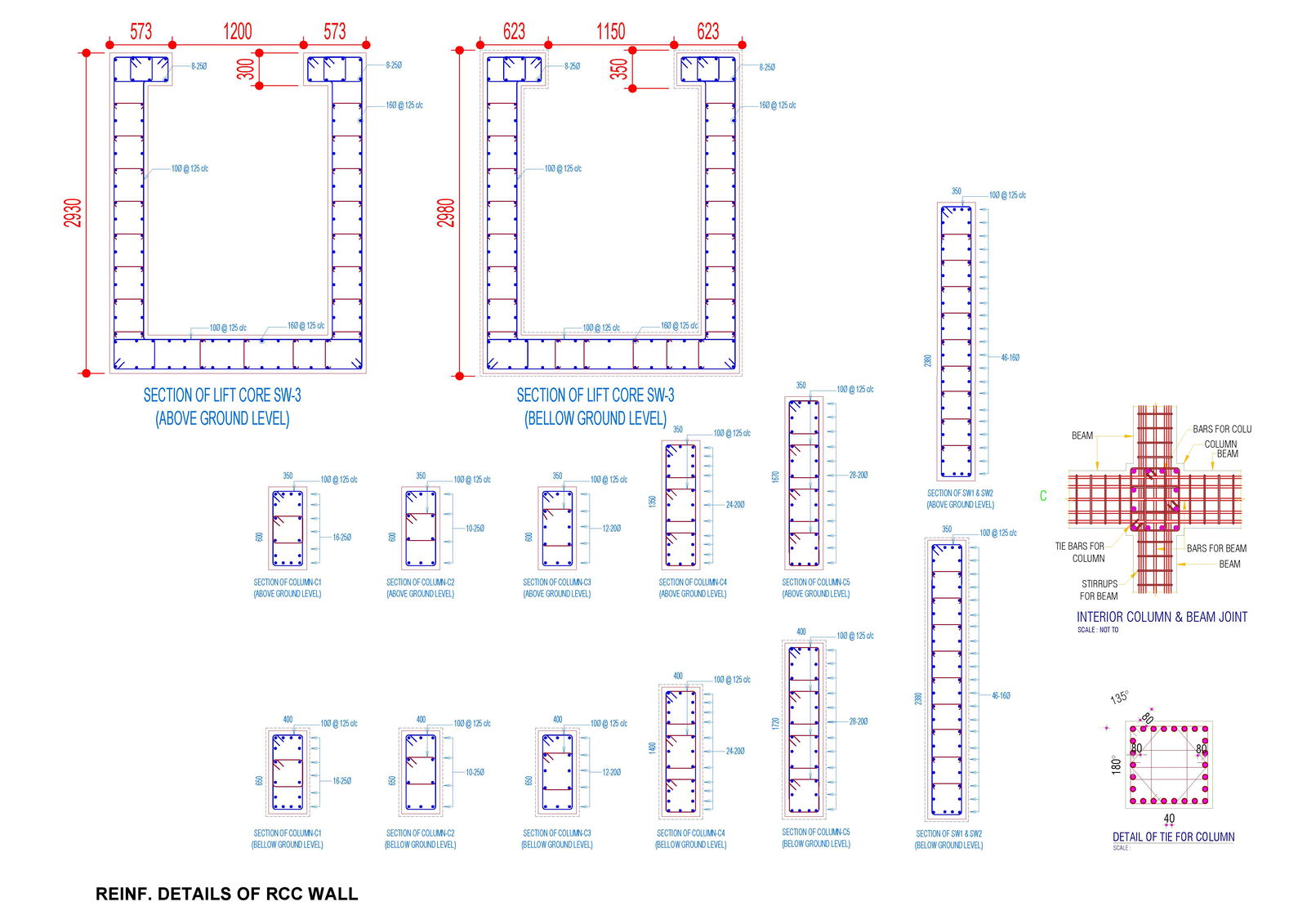

Reinforced RCC Wall Detail with Steel Reinforcement and Sections

This AutoCAD DWG file provides comprehensive reinforcement details of a reinforced cement concrete (RCC) wall, including vertical and horizontal steel bar placement, stirrup spacing, concrete cover, and cross?section annotations. The drawing shows the distribution of main reinforcement and lateral ties with precise dimensions and notes to ensure structural stability and load?bearing capacity in residential or commercial applications. Typical reinforcement includes vertical bars at specified centers and horizontal bars for shear resistance, along with clear visualization of wall thickness, footing connections, construction joints, and anchorage details. Architects, civil engineers, and builders can use this file to ensure compliance with structural design standards and optimize construction planning. CAD professionals can easily edit, integrate, and implement this RCC wall reinforcement into larger building frameworks. Fully layered and compatible with AutoCAD, Revit, SketchUp, and 3D Max, this DWG supports material estimation, structural detailing, and construction documentation.
